DESCRIPTION
ESPECIALLY
The use of the best and most robust materials, extreme manufacturing precision, as well as the latest reflector technology with the highest water resistance are characteristic of all X products.

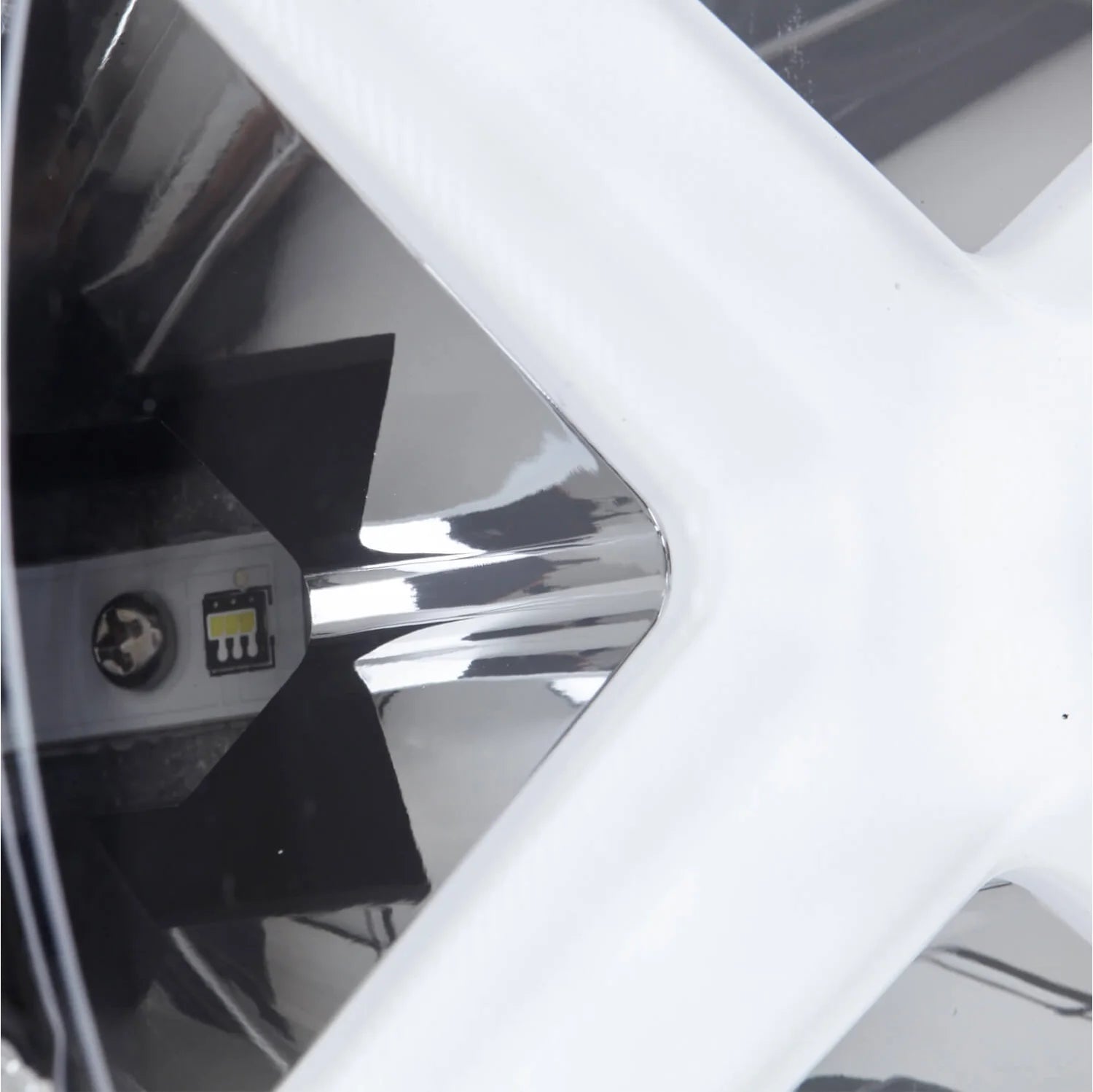

The light distribution is controlled by curved symmetrical chrome reflectors, allowing both standing and hanging mounting of the headlight. The light's spread angle is directed straight ahead. The light goes where it needs to: across the full width of the roadway. Additional energy consumption and glare for oncoming traffic are thus avoided.
IMPRESSIVE
The high light transmission of the lightweight yet shatterproof polycarbonate lens, which is coated with an additional UV-resistant layer, is impressive. The enhanced light sharpness and detail clarity allow the driver to immediately recognize objects, thereby increasing safety on the road. Additionally, early eye fatigue is prevented, and driving - even over long distances - becomes more relaxed.
ROBUST
All materials have been tested for the toughest use under the most extreme conditions, and the consistent performance of the headlights is guaranteed at ambient temperatures ranging from -40°C to +80°C.
The internal thermal management automatically regulates the light output, ensuring the durability of the chips for years.
The certification also naturally extends to electromagnetic compatibility, ensuring that there are no interferences with other devices in your vehicle.
With a diameter of 170 mm, the X-TYPE 7 inch is designed to be easily integrated into spatially limited areas of the vehicle.

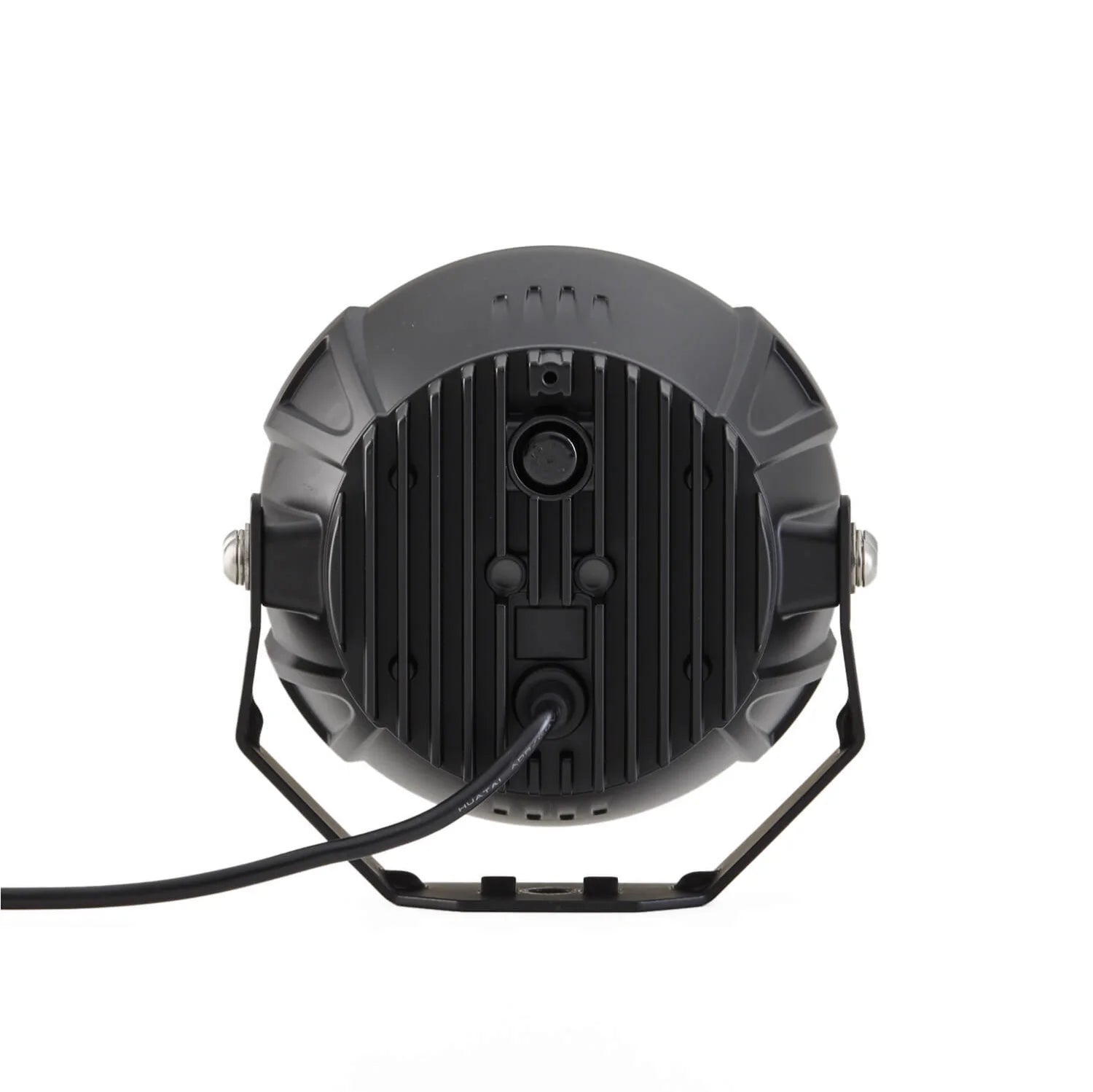

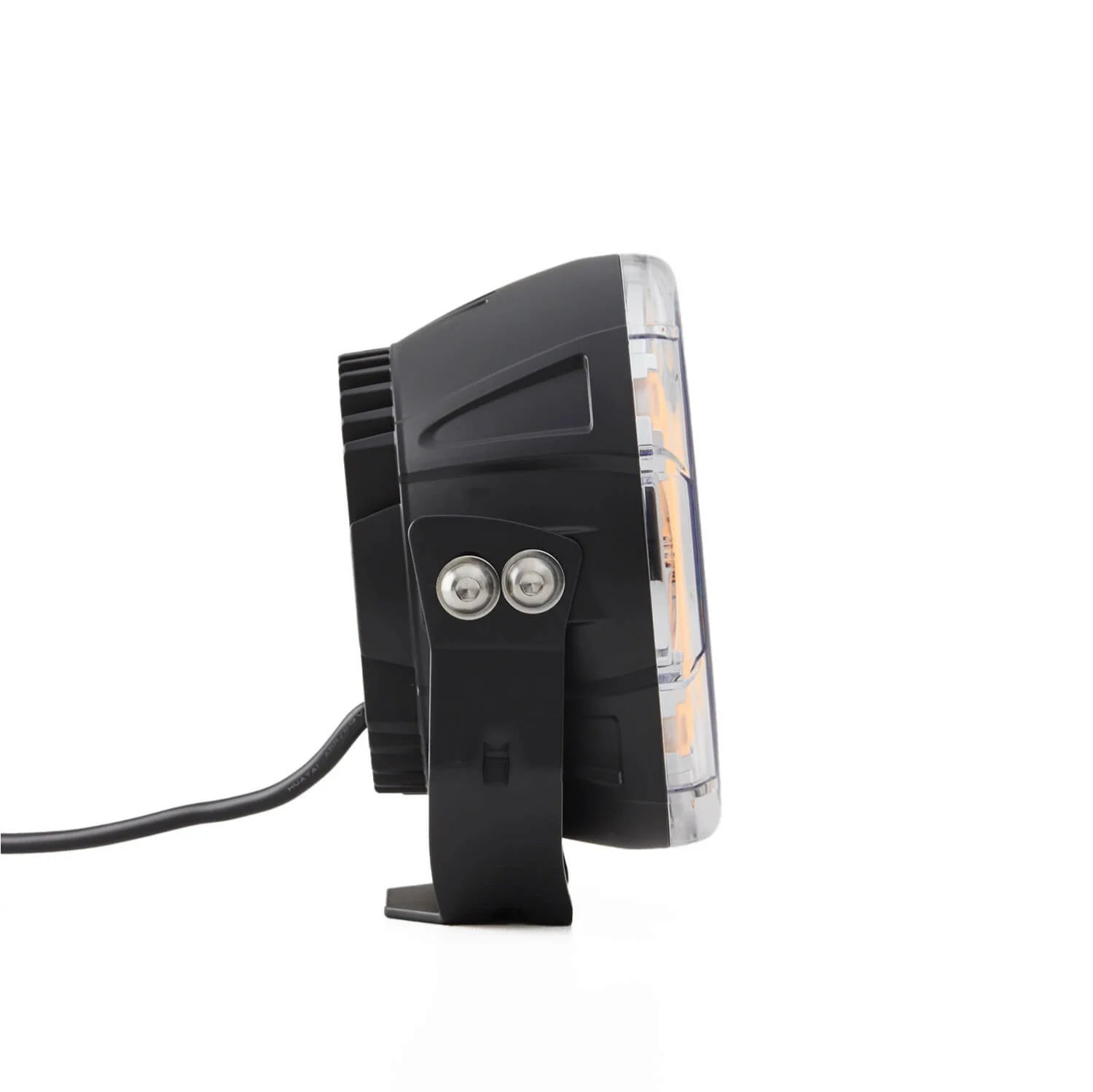

The included bracket allows for flexible positioning to ensure optimal light alignment in the desired direction.

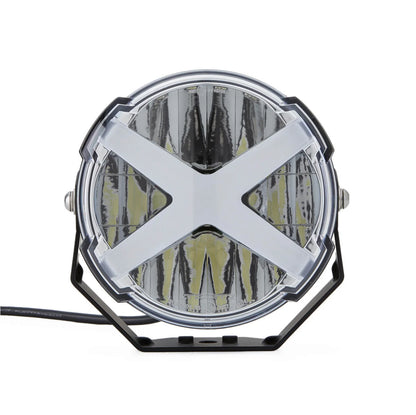

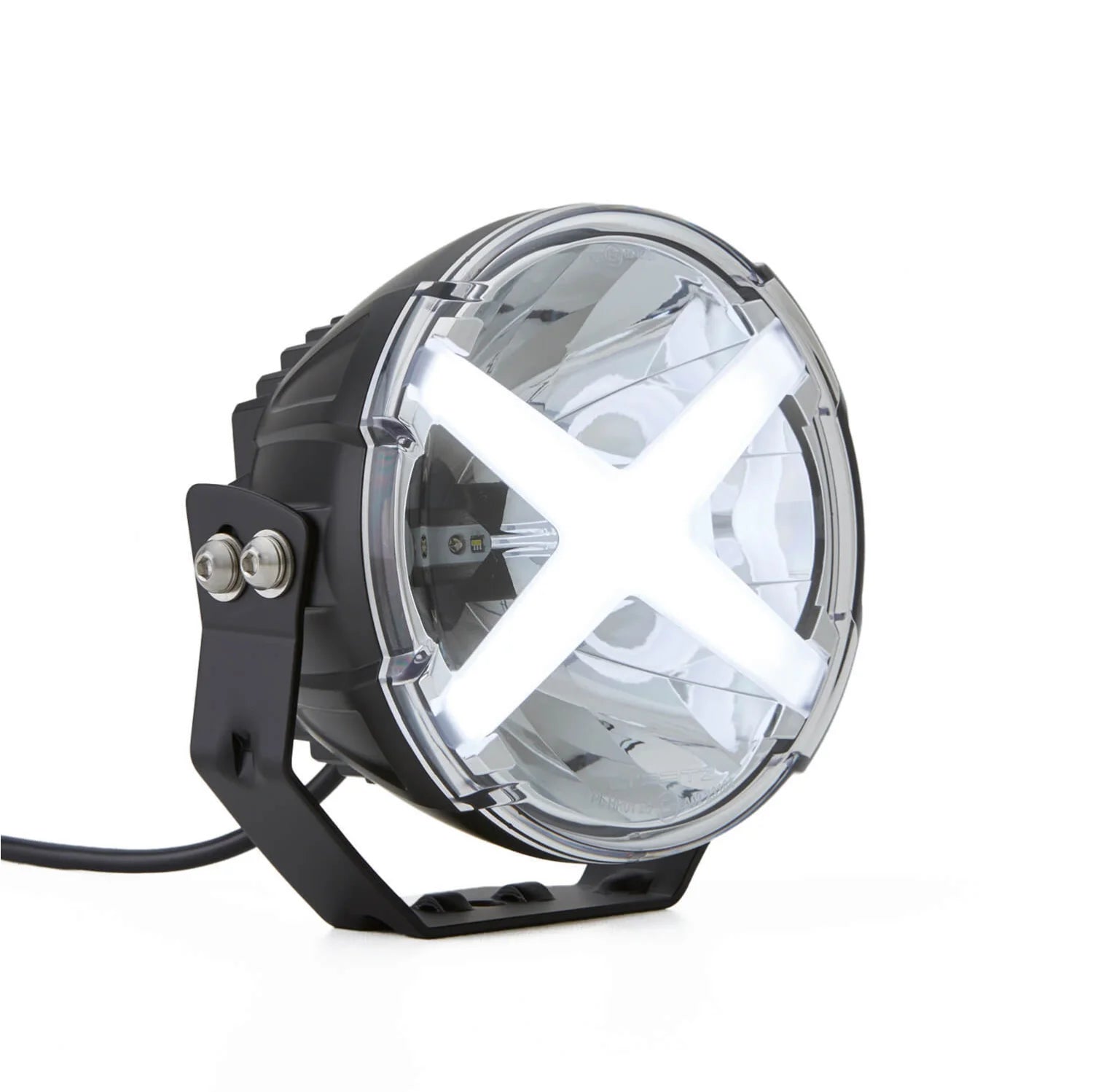

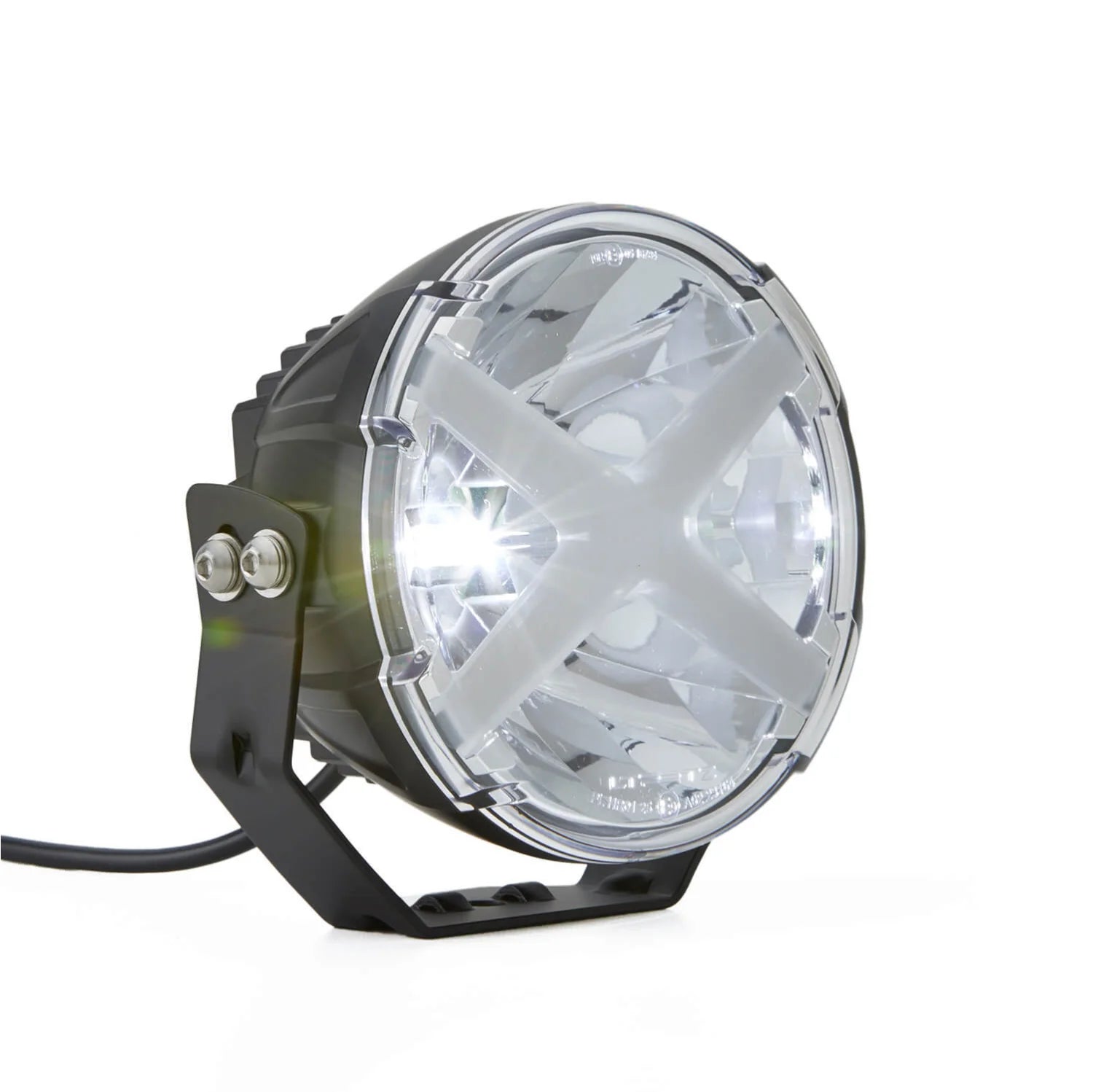

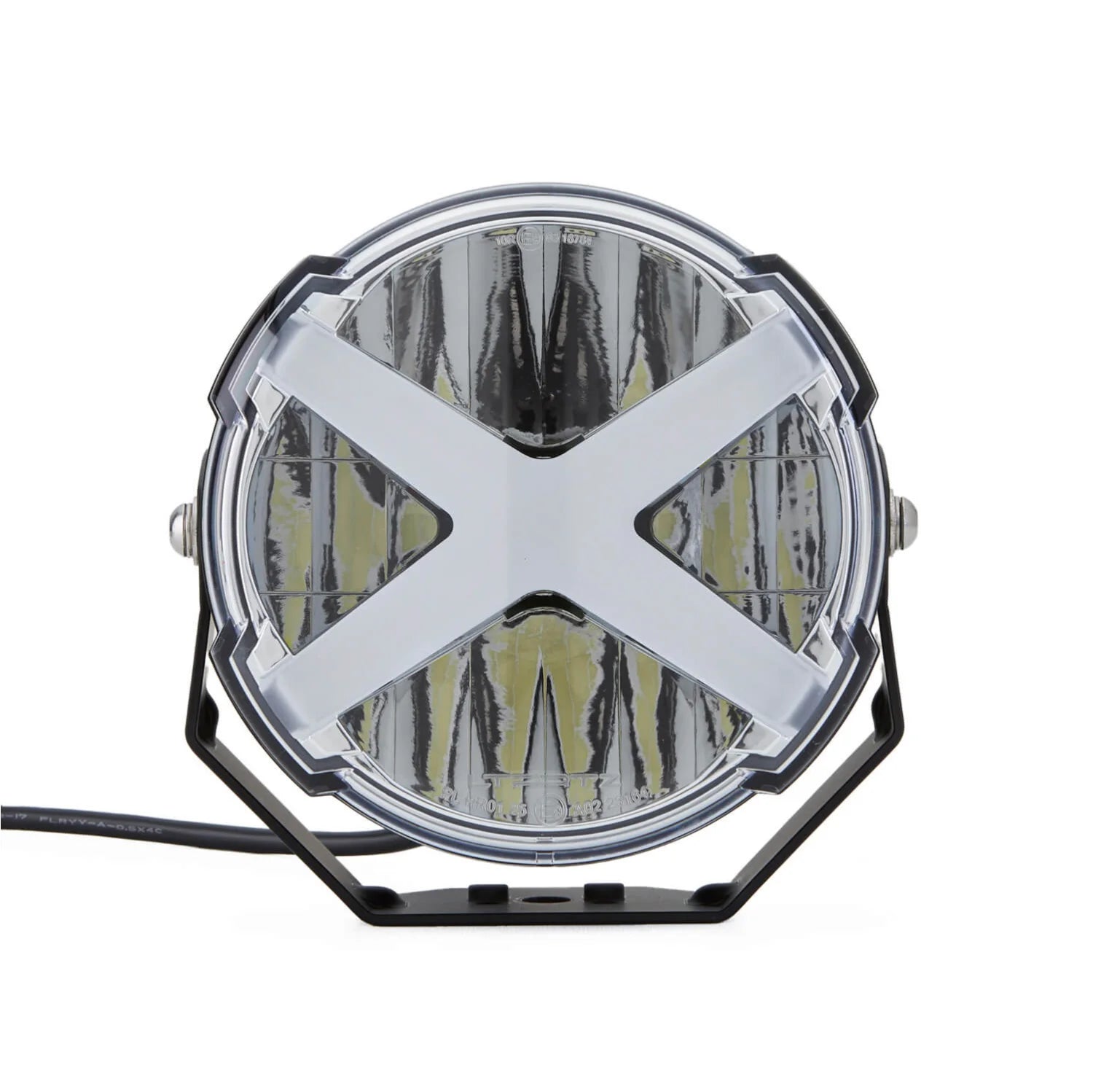

Discover the X-TYPE, our LED auxiliary headlight with road approval! Thanks to its extraordinary light output, the X-TYPE is the first choice for applications where maximum illumination of the road is required at night.
In addition to its aesthetic design, the series is functionally superior, with an aerodynamic shape that minimizes air flow and resistance, even at high speeds.
✔ Waterproof and dustproof, shock-resistant
✔ High-quality materials
✔ Compact size fits many applications
✔ Usable in ambient temperatures from -40°C to +80°C
✔ Certified for electromagnetic compatibility
✔ Reference number: 25

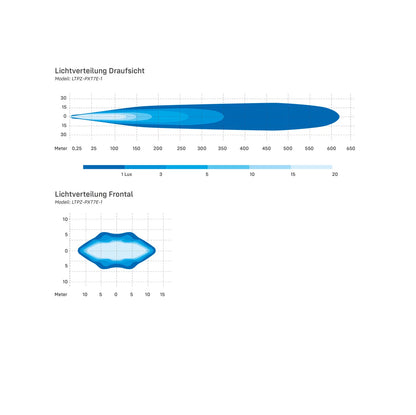

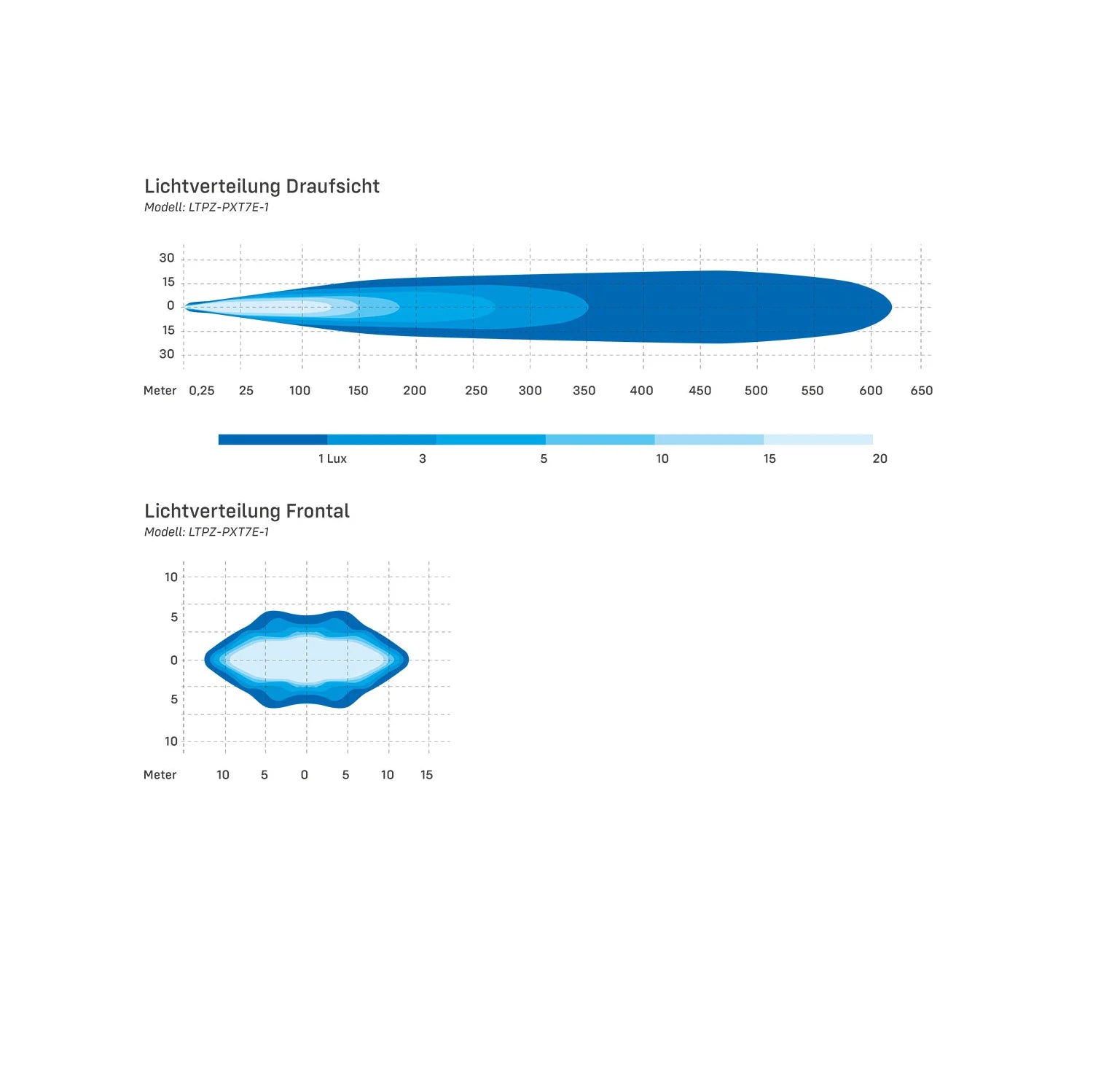

✔ Range: 620 m (0.1 Lux), 310 m (1 Lux)
- Operating voltage: 9-33 V DC
- Power consumption(12/24 V) :

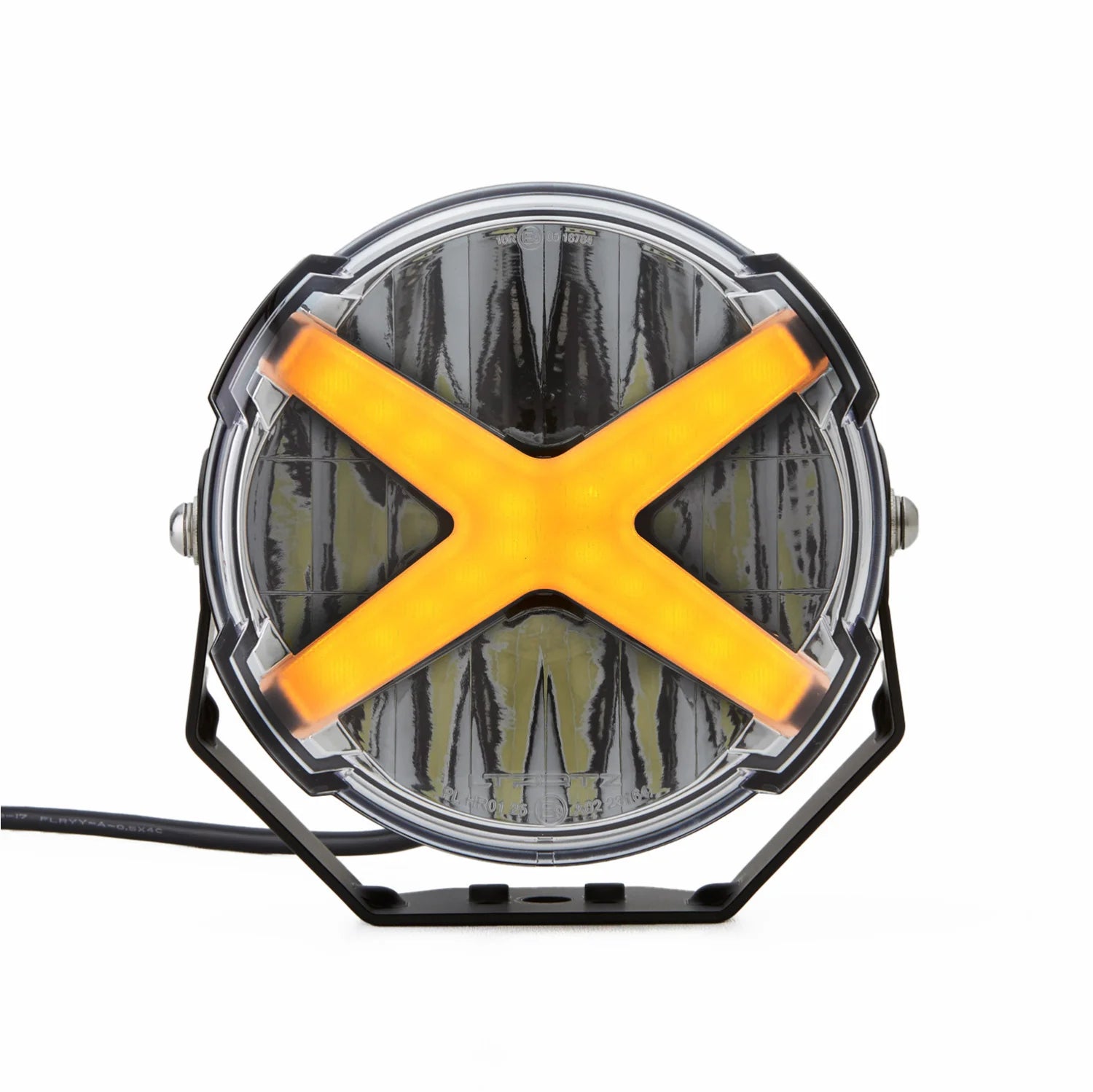

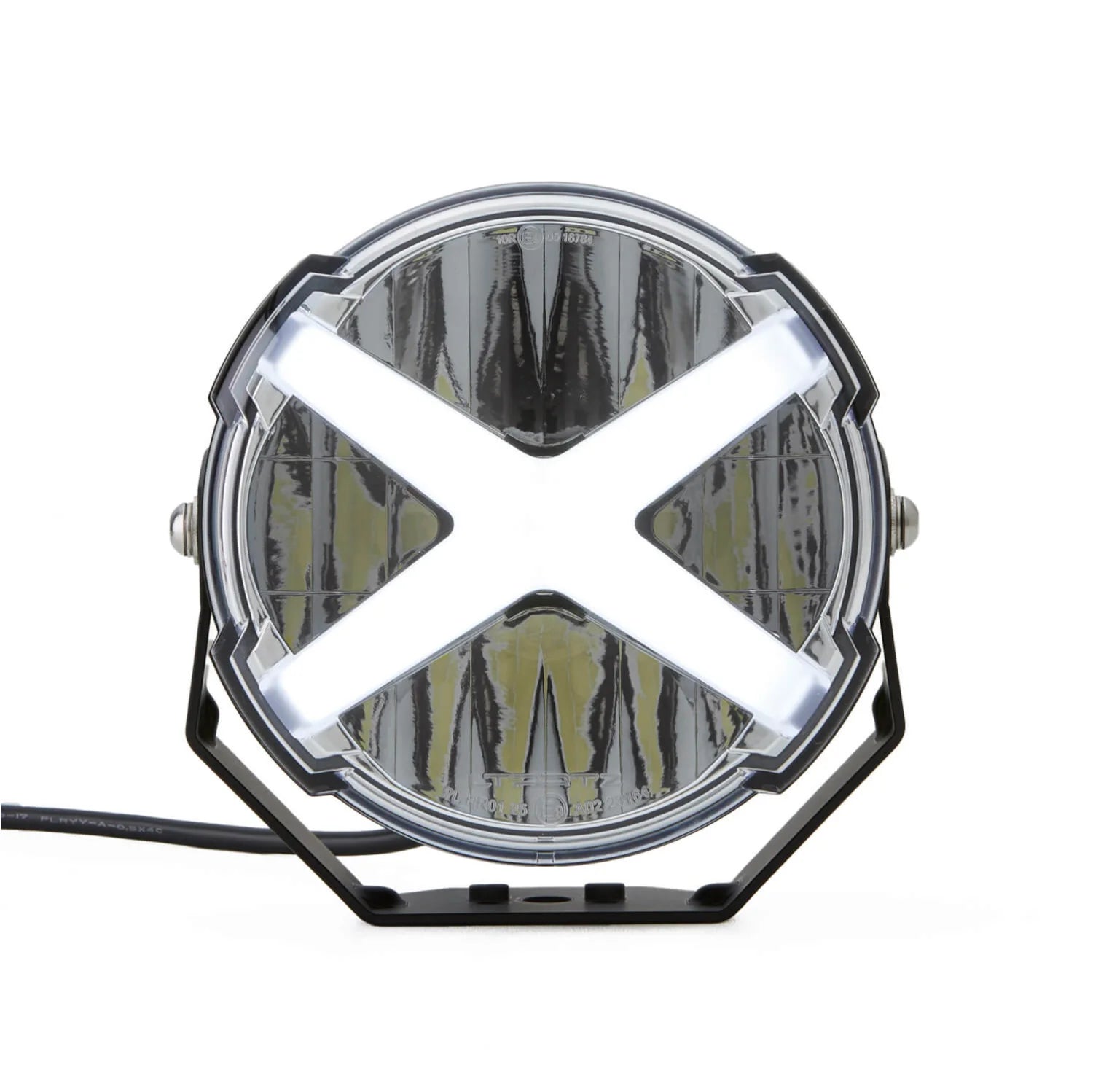

- Standby light 3.4 W / 3.2 W | High beam 13 W / 12 W
- Housing: Aluminum ADC12
- Lens and reflector:Polycarbonate
- Mounting: SPCC
- Connection: Deutsch 4-pin
-

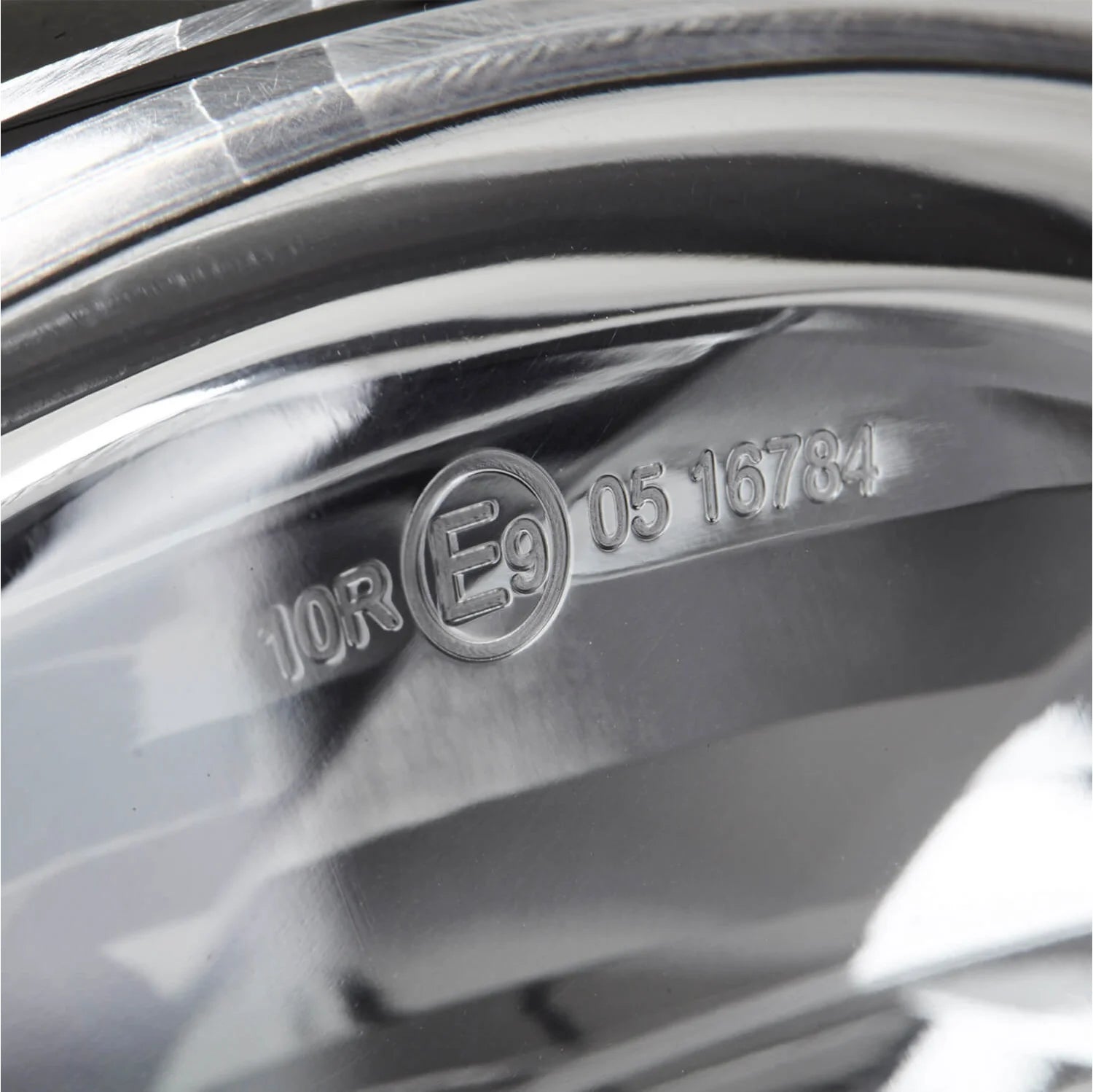

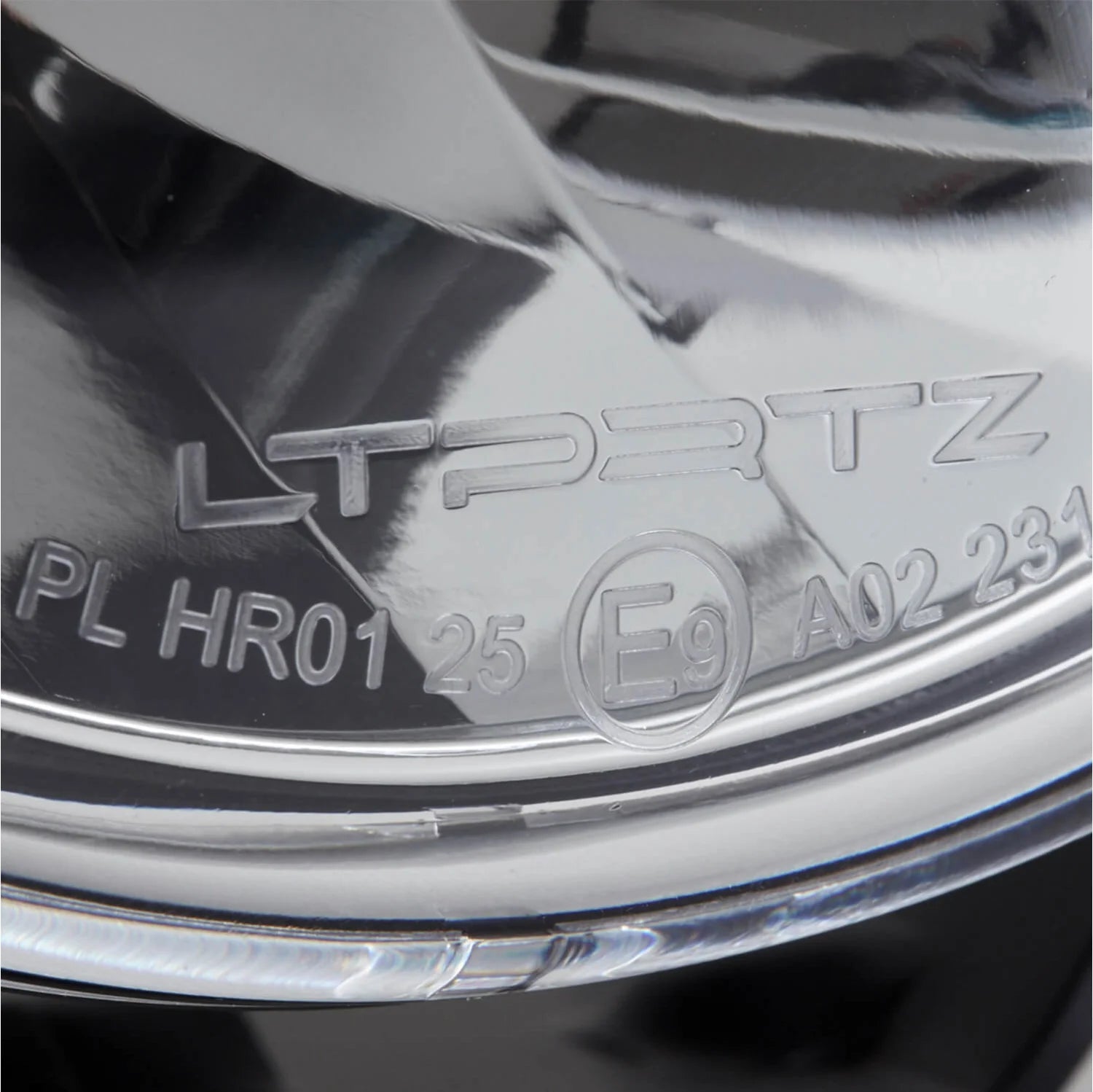

ECE Homologation:
R10 | R7 | R112 Class B - LEDs: High beam 4x | Position light 24x
- High beam light color:White
- Lumen (raw): 4,000 lm
- Light intensity: 108,000 cd
- Protection class: IP69K
-

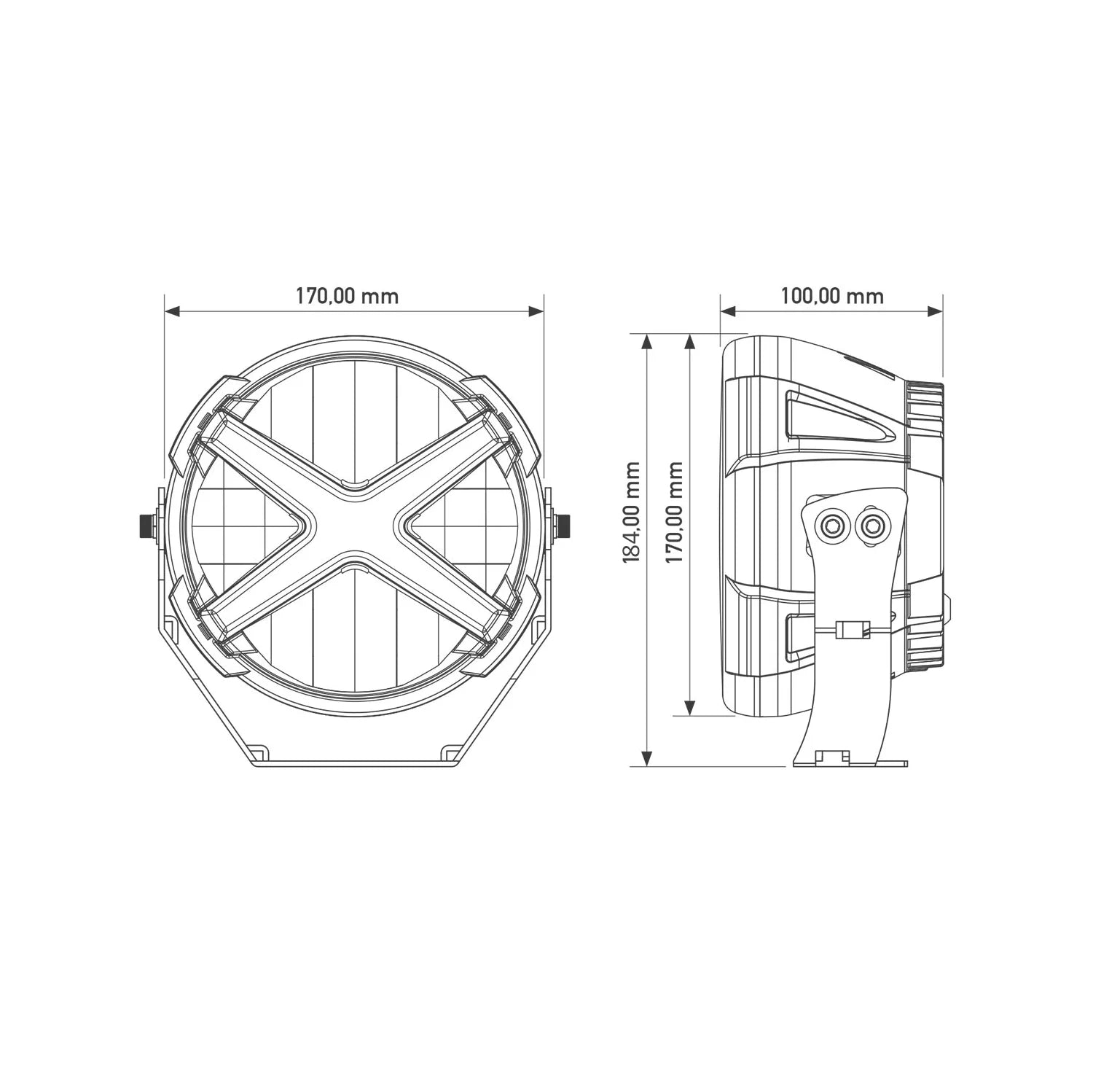

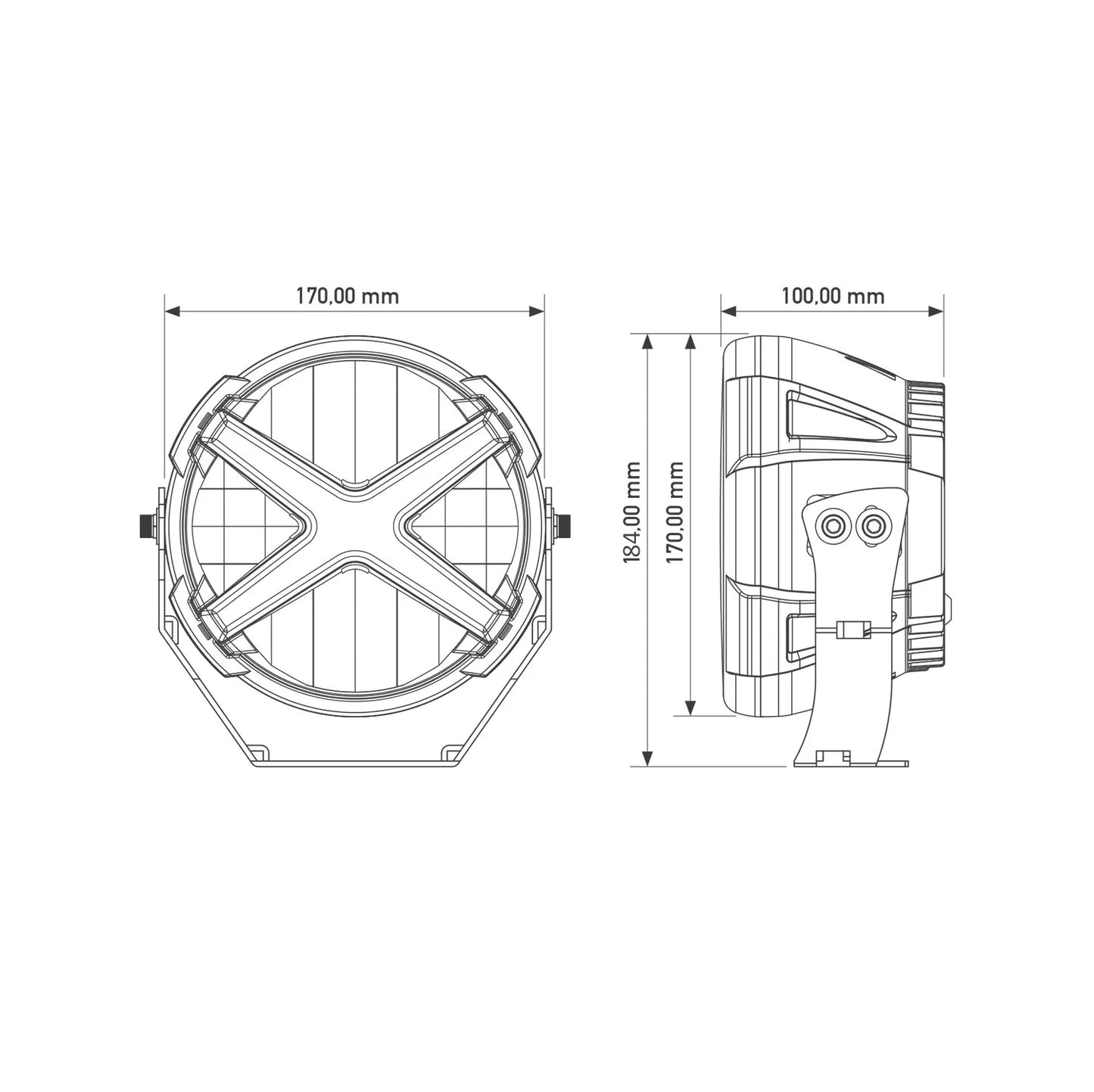

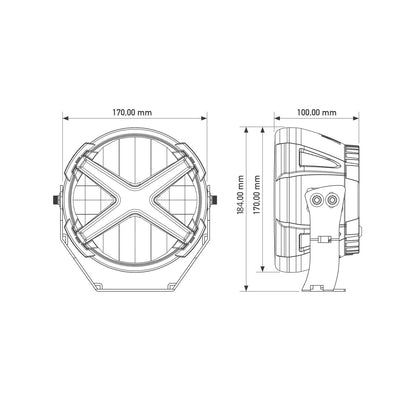

Dimensions:
Ø 170 x 100 x 184 mm
