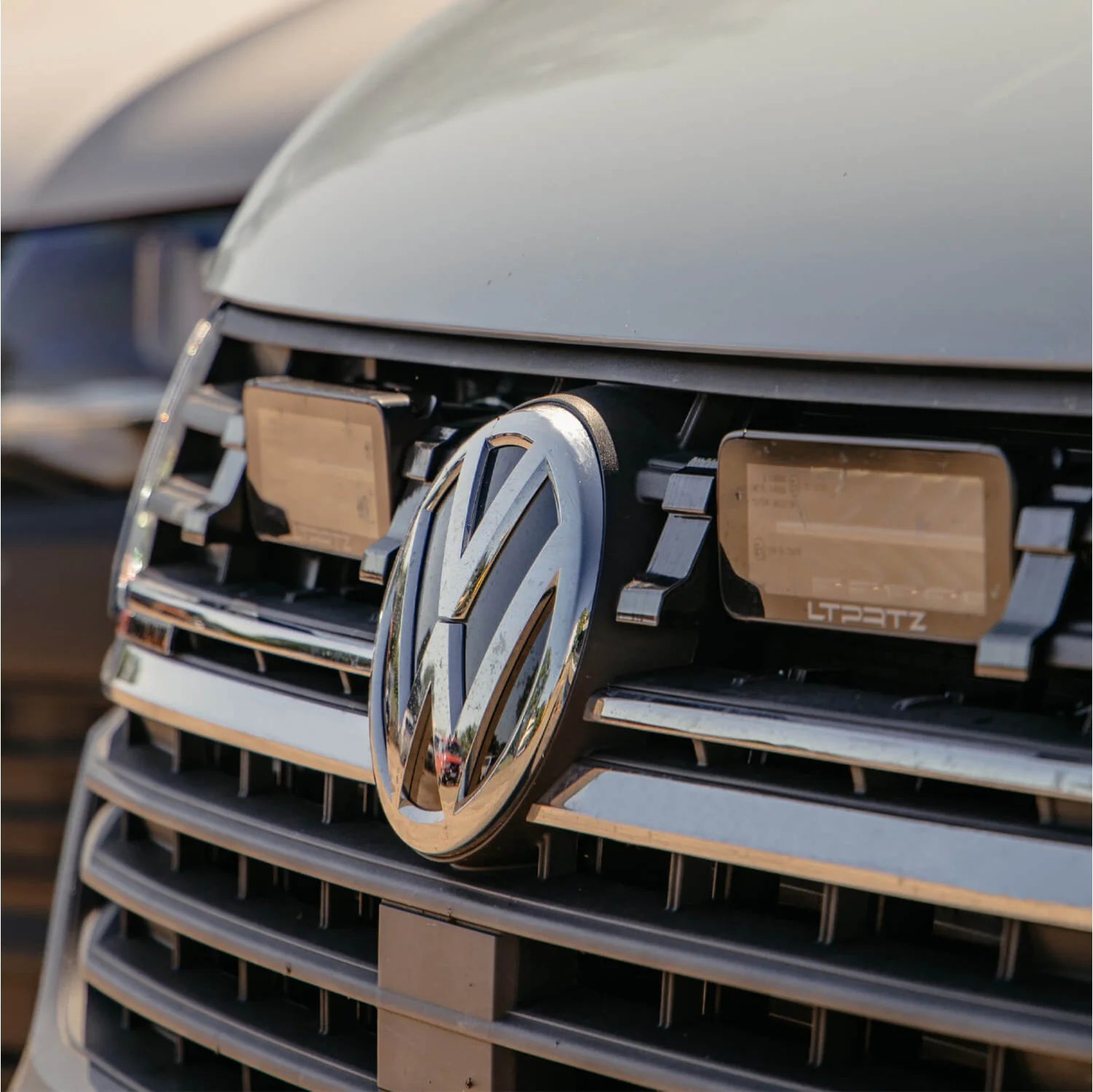

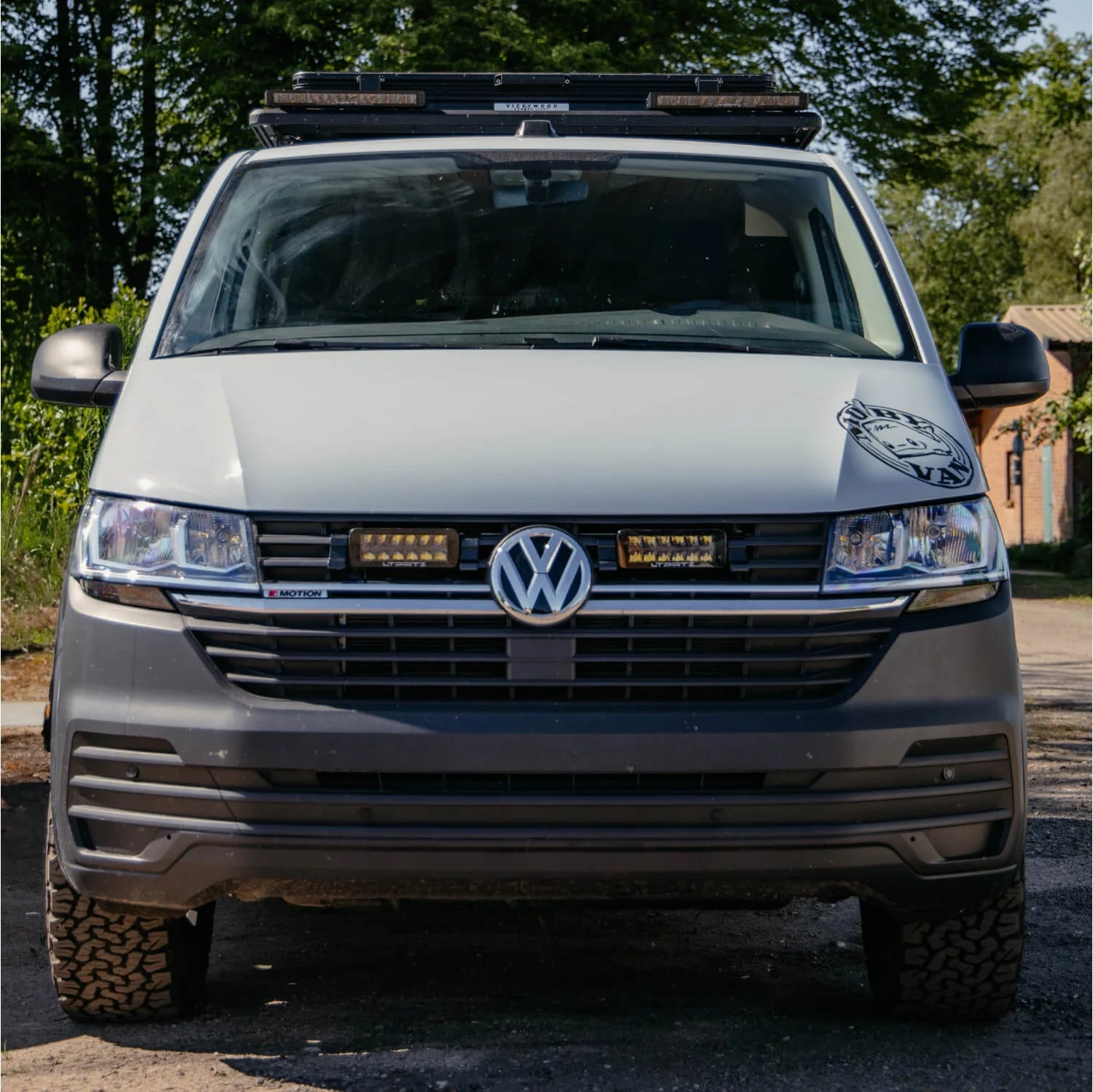

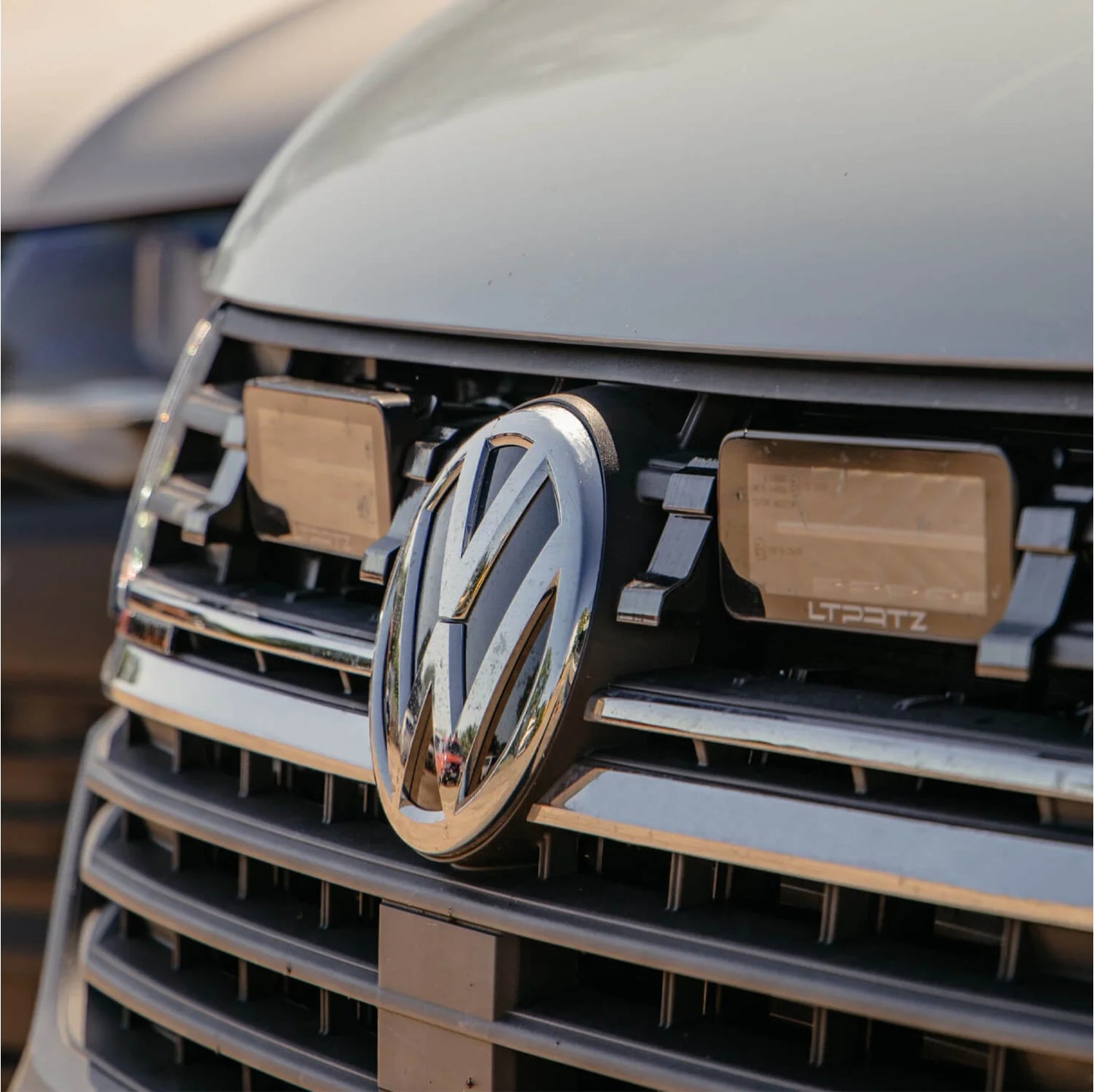

VW T6.1 LTPRTZ grill-Integrationkit Plug & Play

DESCRIPTION

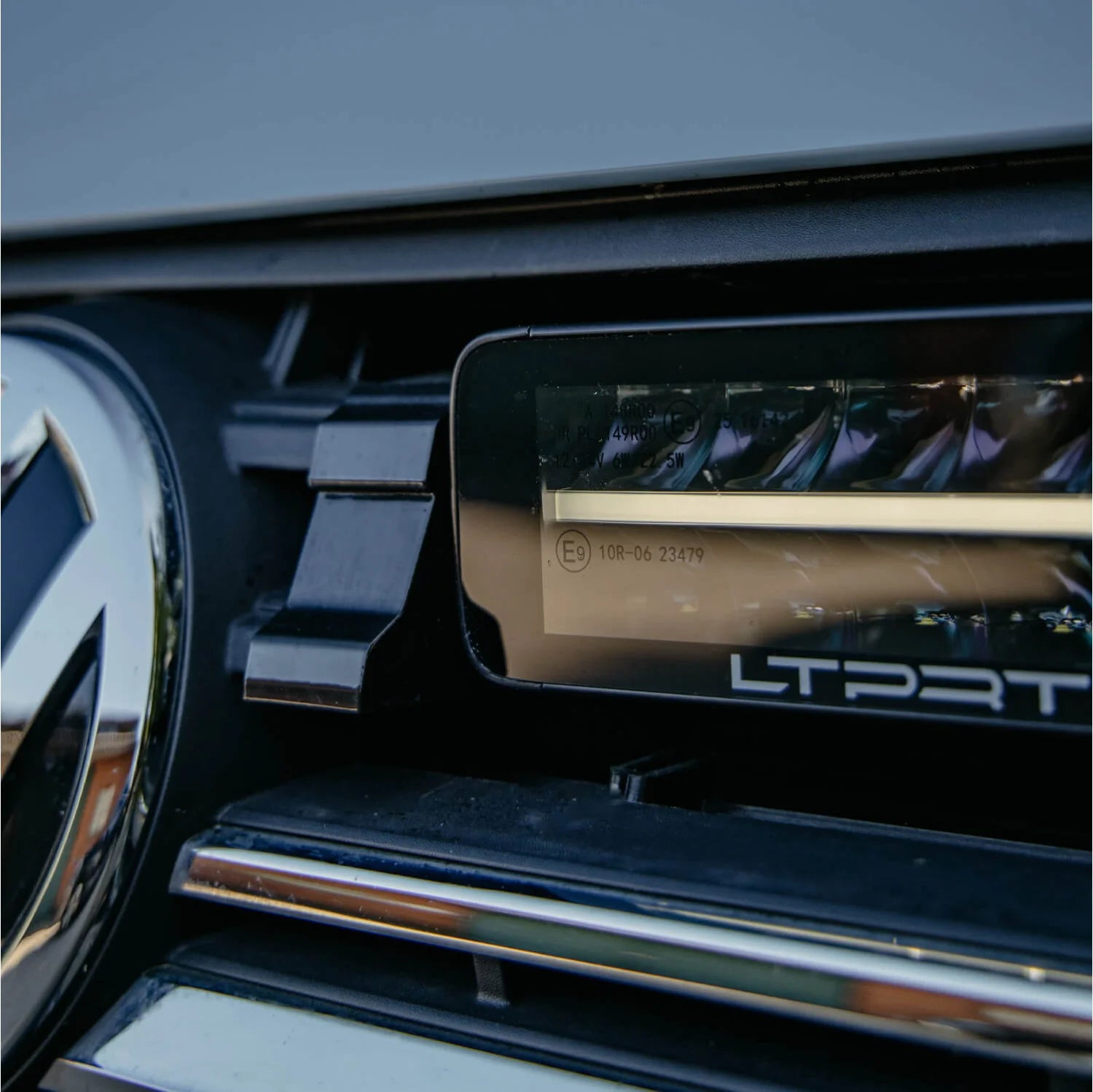

Mount:

• Four high-quality mounts for installing two headlights
• Stable mounts made from 3D printed material
• Paintable
• UV- and weather-resistant ABS material
• Fits only for VW T6.1
• Headlight alignment on the mount via elongated hole drilling

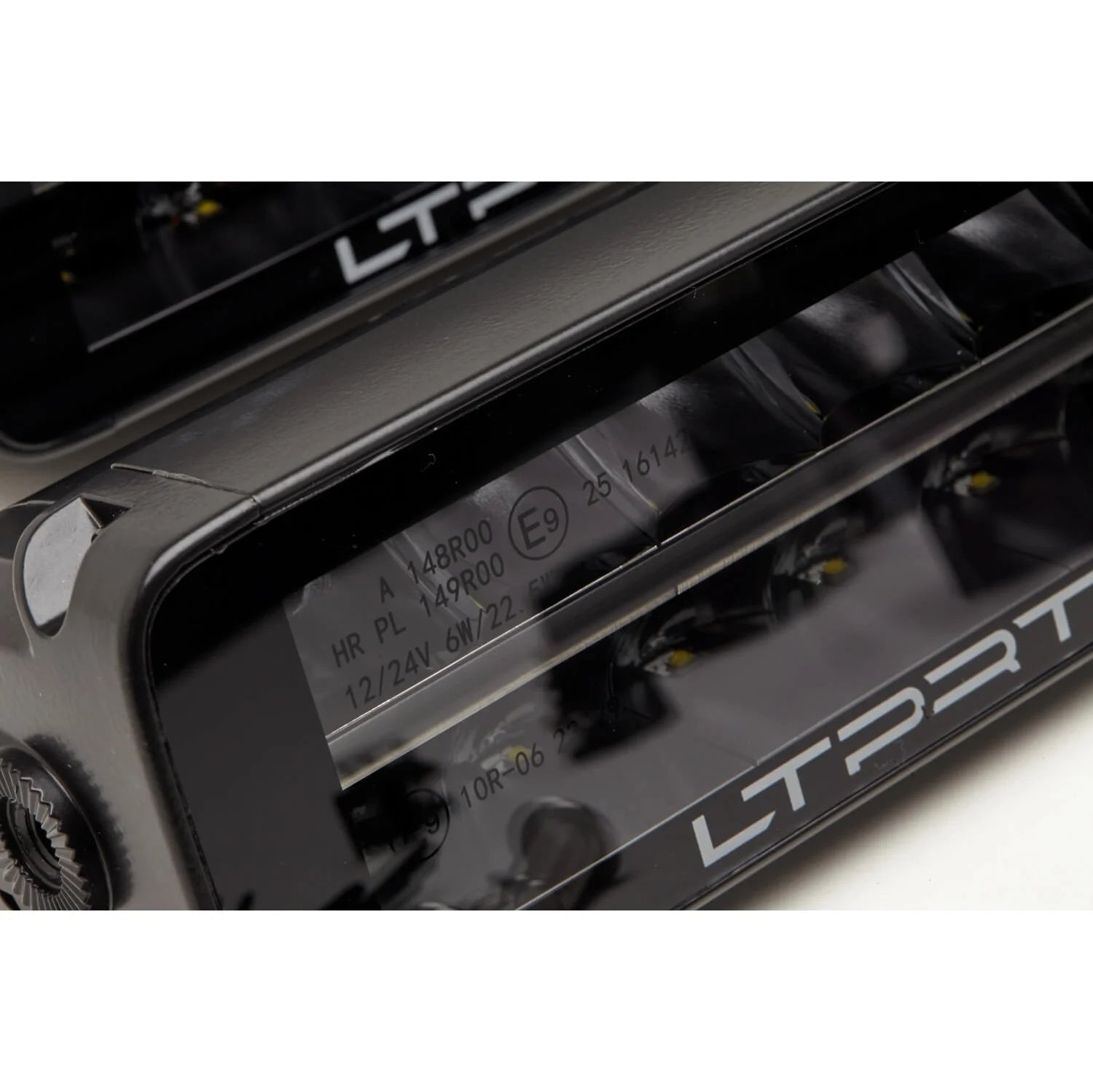

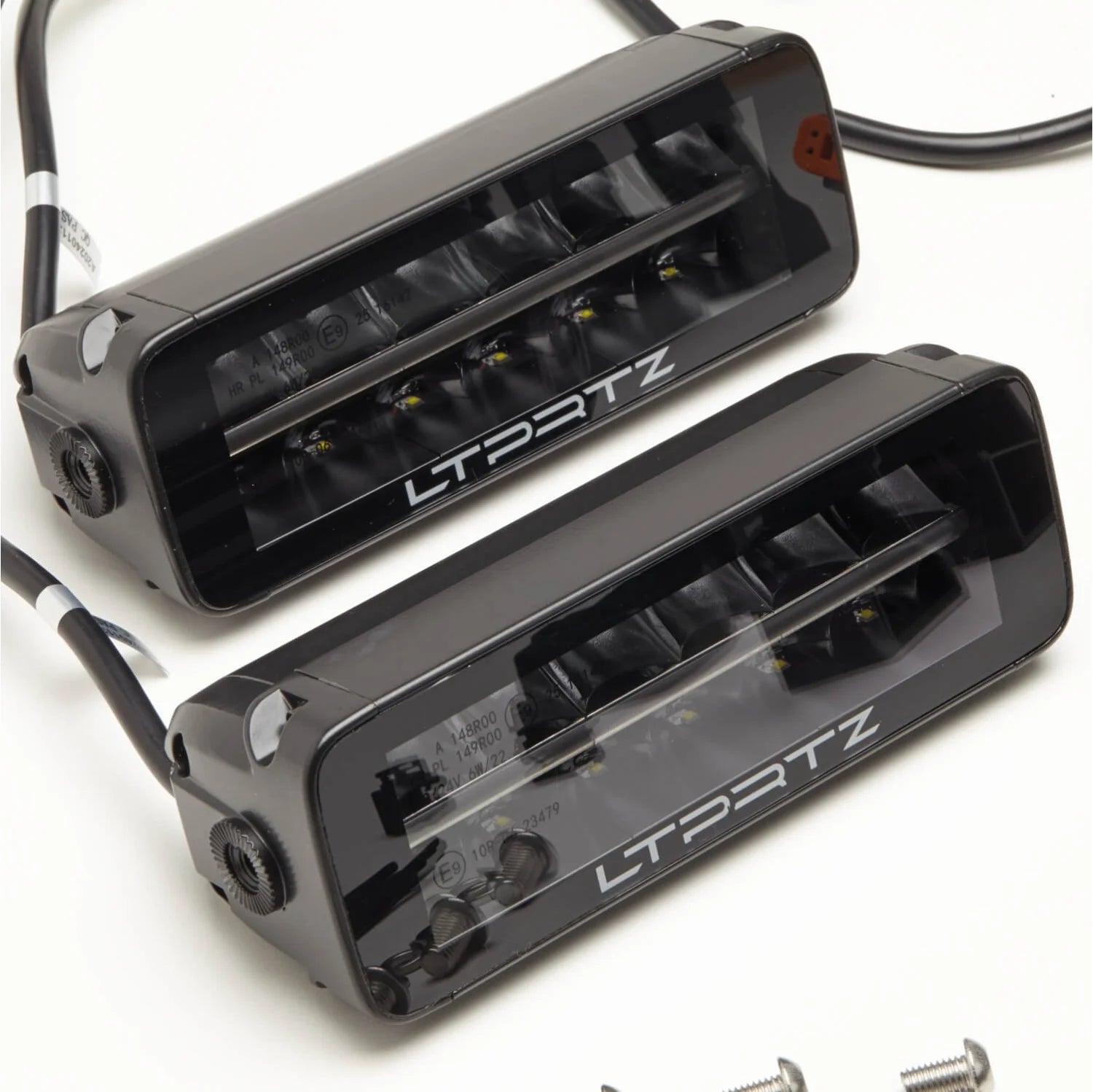

Headlights:

• 3rd generation of our popular TRX series
• With position light strips in white (ECE approved)
• AMBER light strips in orange (Offroad only)
• With Offroad Boost Mode function. The Boost Mode can be activated off public roads.
• New Anti-Blend reflectors combine concentrated spot and wide-spread flood elements for uniform illumination of the entire field of vision
• Complete with mounting materials
• Unique stealth design without screws on the front
• Use: Public roads with ECE-approved high beam

Technical Specifications:

• High beam power: R149: 22.8W | Boost mode: 47.6W
• Position light power: R148: 6W
• Operating voltage: 10-30 V
• Protection class: IP 67
• LED chips: 12 pcs x 5W
• Effective light output: 1,540 lm | Boost mode: 3,238 lm
• Housing color: Black
• Color temperature: 5800K
• Material: Extruded aluminum housing
• Lens material: Polycarbonate
• Mounting: Robust aluminum bracket
• Light dispersion: Spot 10°
• Range: 658 m (0.25 lx), 329 m (1 lx)
• Homologation: ECE R149 | R10
• Reference number: 25
• Dimensions L x W x H (housing): 20.36 x 6.71 x 7.0 cm

Relay Wiring Kit with Dongle

The wiring kit allows for easy connection of the auxiliary headlights. All connections and cable lengths are pre-configured so the installation is quick, easy, and safe.

The wiring kit is simply connected to the battery in the engine compartment, the ground point behind it, and the headlights.
No cables need to be routed into the passenger compartment!

A Bluetooth relay integrated in the wiring kit communicates with the vehicle via an OBD dongle. Thus, the headlights are controlled in sync with the vehicle’s high beam.
The hassle of finding the high beam signal is eliminated, ensuring a non-destructive installation.

The switching between white and orange position lights is possible via a plug connection in the engine compartment.
Before first use, the dongle must be set up via an app: The appropriate protocol for the vehicle must be selected in the app, and the signals assigned. Time required: approx. 5 minutes.

Notes:
The use of the orange position light is only allowed off public roads!
The reference number of the main headlights should be checked by the customer to prevent exceeding the allowed total reference number of 100. This mainly applies to vehicles with standard LED headlights.
For some vehicles, it is necessary to test multiple protocols in the XBB app to find the suitable protocol for the vehicle.

Wiring Kit CAR-ELECTRIC:

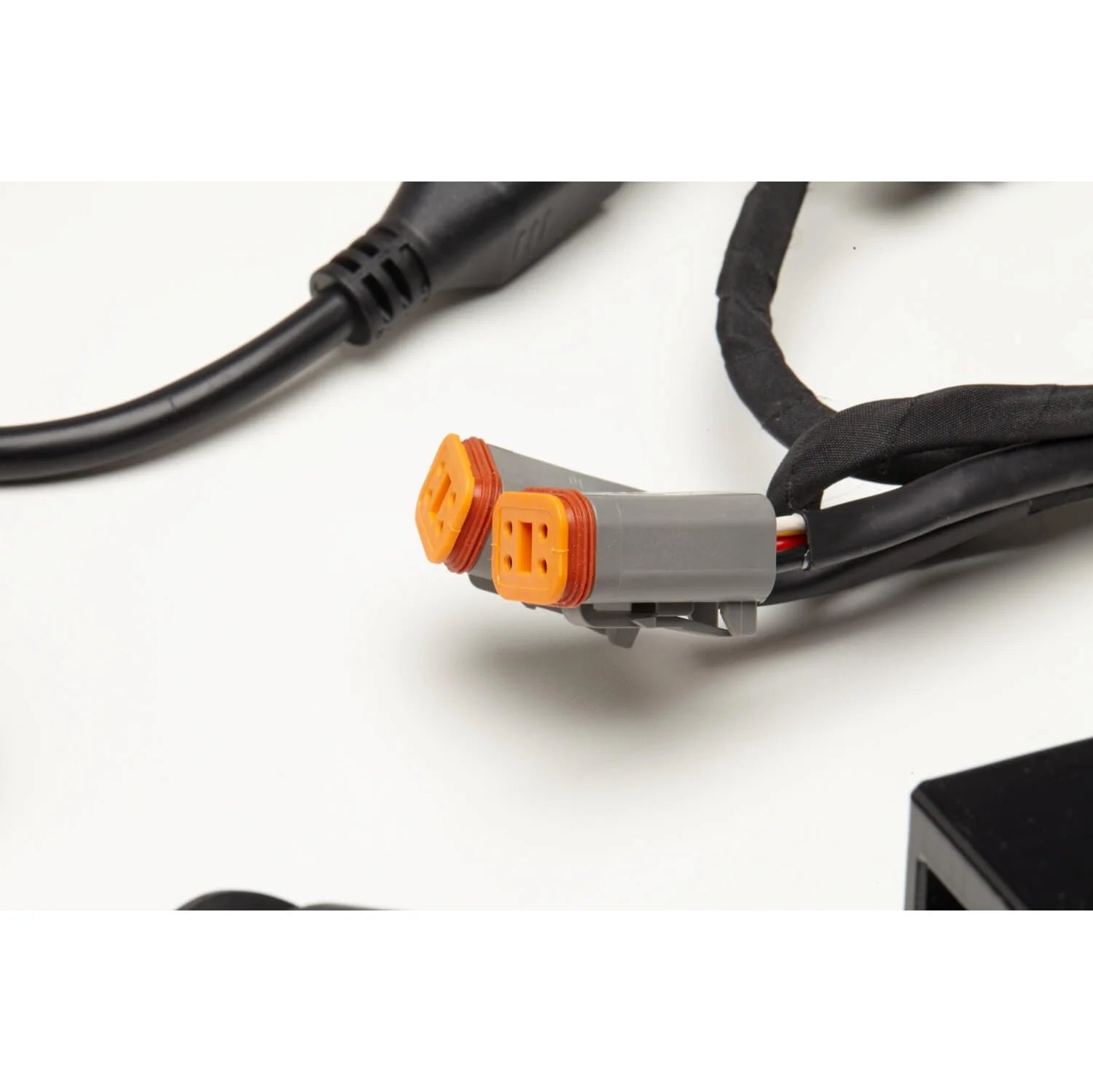

Relay wiring kit for two high-performance LED headlights with 4-pin DT connectors

• Fits only for headlights LP-TRX3-7E
• 2x Deutsch connectors 4-pin
• Custom-fit wiring kit for connecting two headlights
• With relay holder for XBB PowerUnit relay in the engine compartment
• High-quality cables and contacts, ring cable shoe type: M6
• Made in Reinbek near Hamburg, Germany

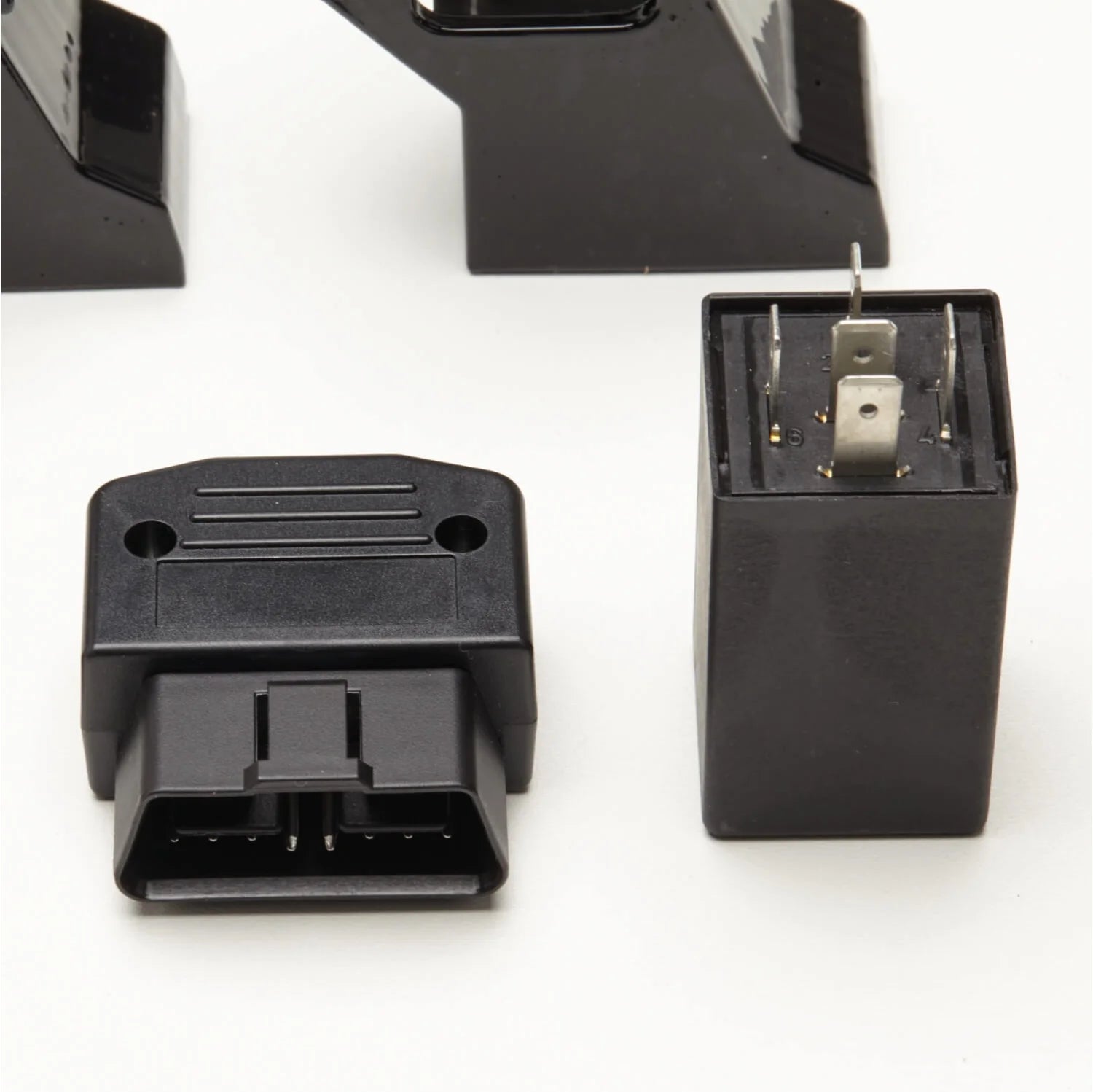

XBB Bluetooth Dongle:

• XBB Bluetooth dongle for connection to the OBD interface
• Setup via app (App name: XBB)
• In-app configuration of headlight control
• Select from various functions: e.g. coupling high beam to high beam signal, coupling position light to engine running signal

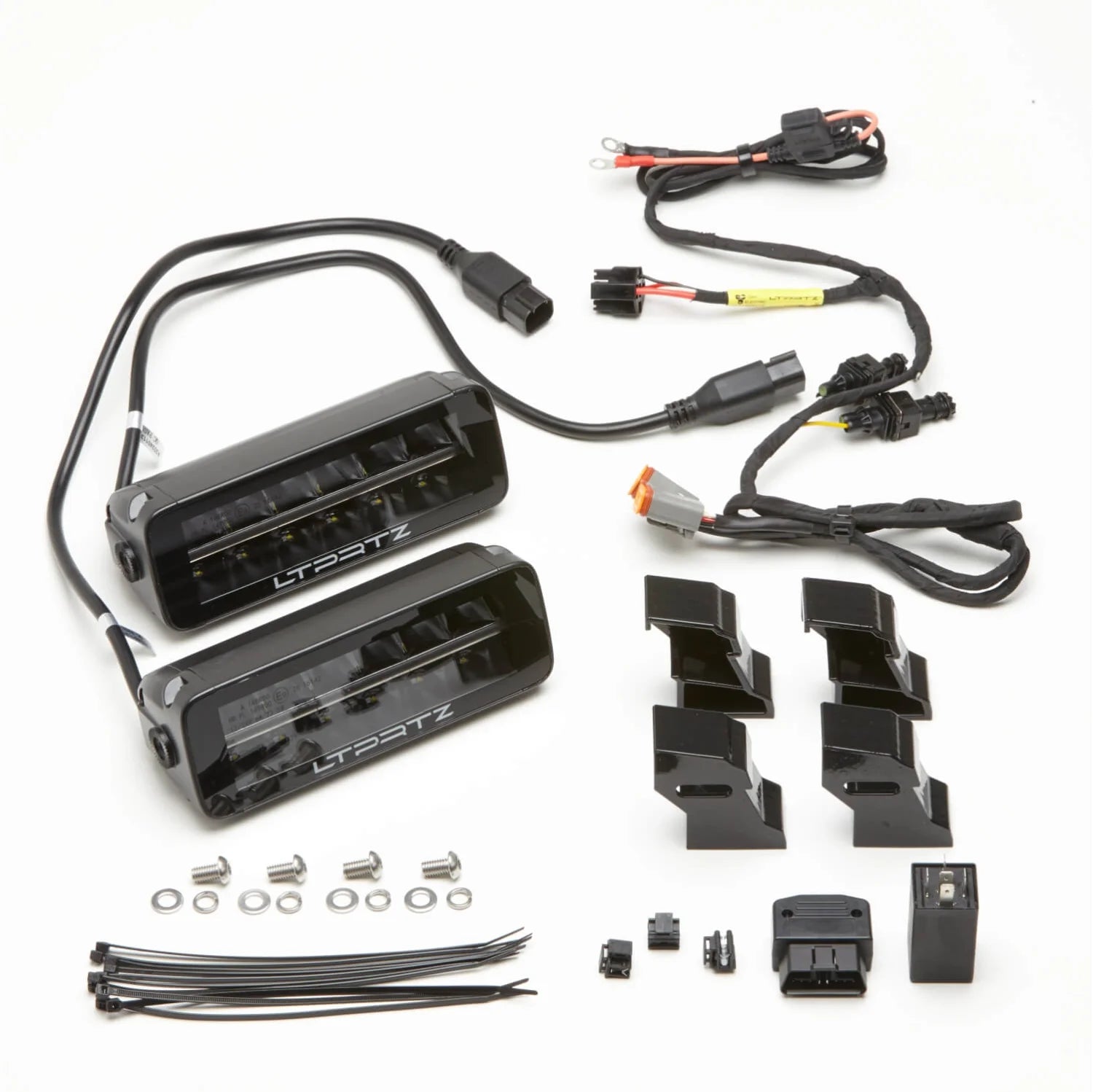

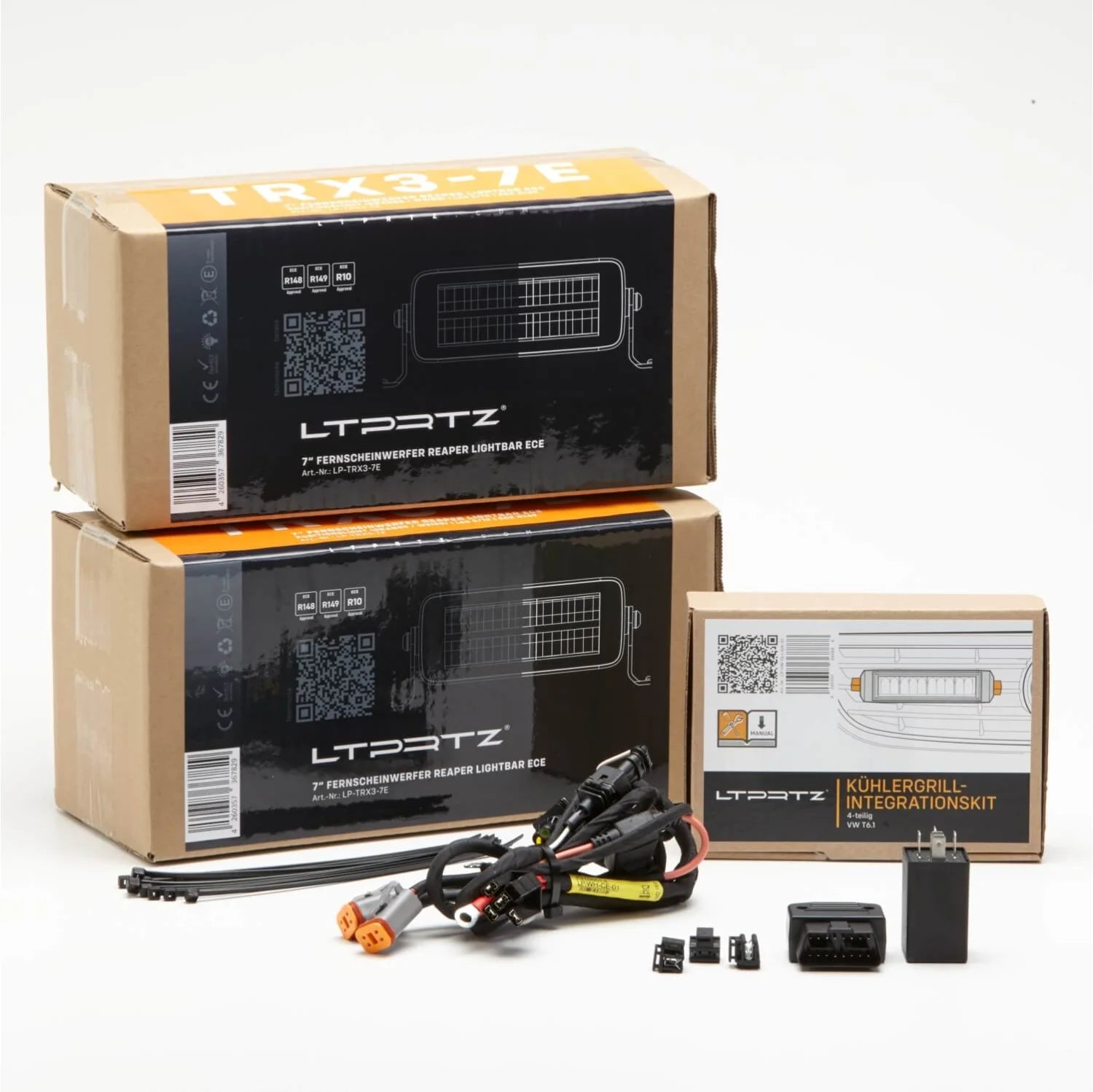

Scope of delivery:

• 2x TRX 3.0 7 inches
• 4x ABS mount
• 1x CAR-ELECTRIC wiring kit
• 1x XBB Dongle & XBB PowerUnit
