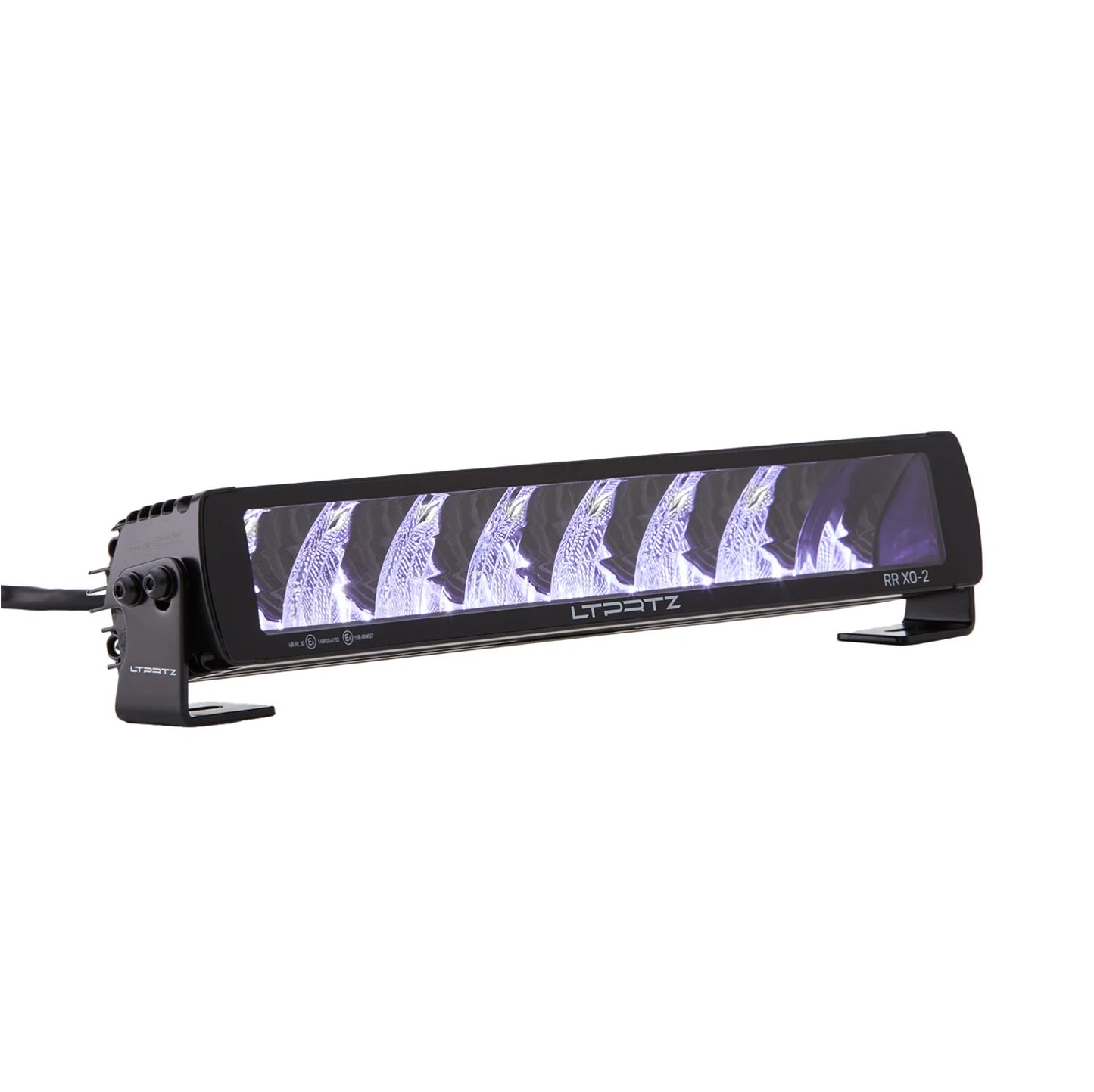

REAPER 20 Inch AMBER - High Beam Lightbar ECE Approval

DESCRIPTION

With AMBER Background Light in White and Orange (Offroad Use Only)

This compact high beam light reaches a range of almost 500 meters in power mode.
Switch to on-road mode and use the paired mounted Reaper Lightbar
compliant with road traffic regulations in addition to your vehicle's normal high beam.
No registration required thanks to ECE approval.

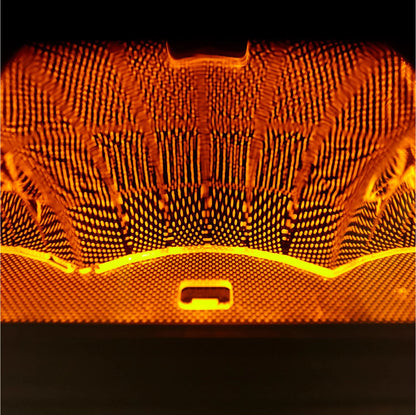

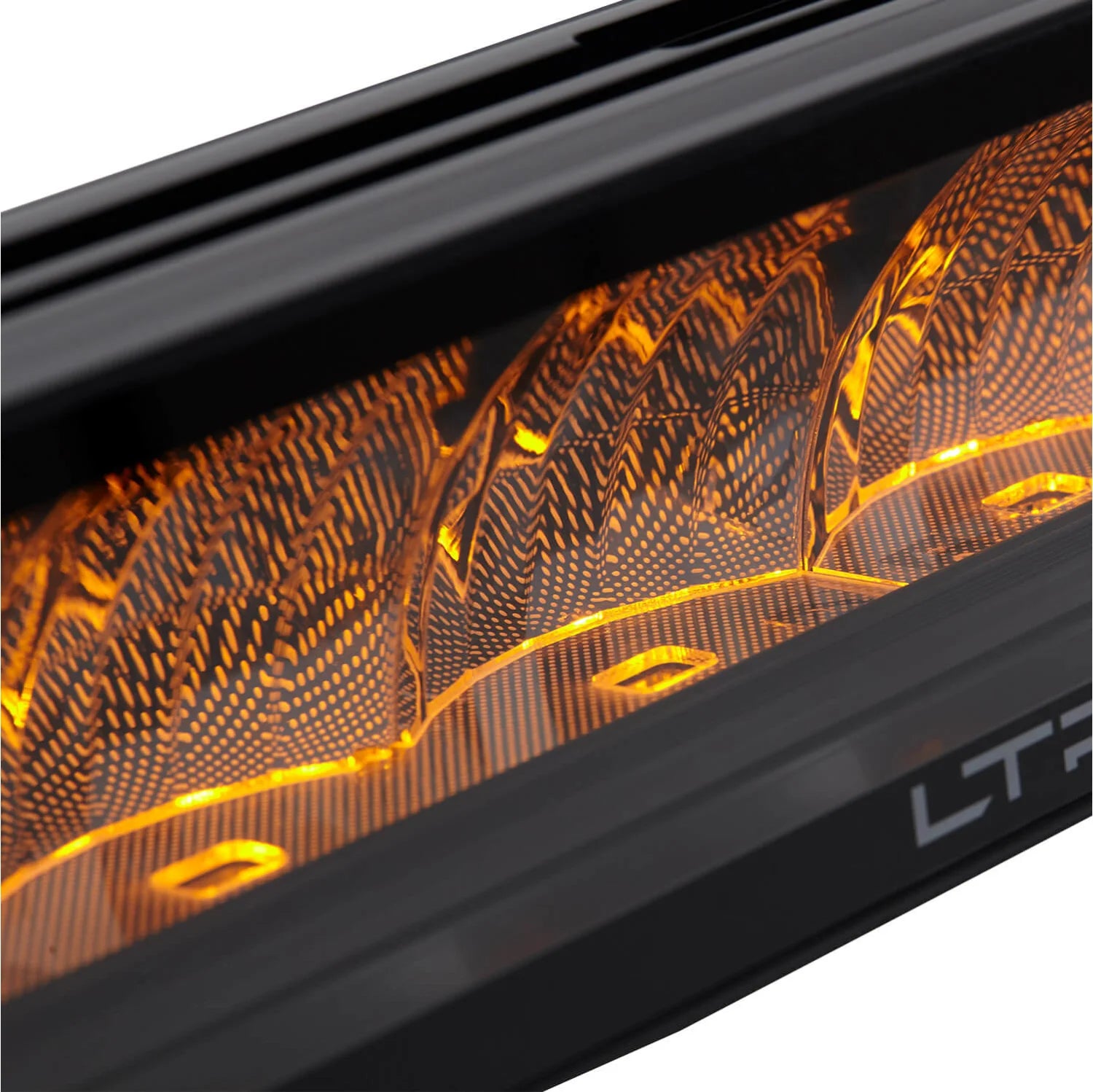

As an extra feature for off-road use, this light offers both orange and white AMBER background light.
And what looks good, works well.

Technical Information:

• Voltage Range: 9-36V
• Current Consumption (A) for High Beam at 13.2V (or 12V):
  Full Power: 9.47A @12V
  R112 (Ref. 30) Power: 2.0A@12V
• Power for High Beam at 13.2V (or 12V):
  Full Power: 113.64W @12V
  R112 (Ref. 30) Power: 24.0W@12V
• LED Type: Domestic: 5520
• Theoretical Lumen at 13.2V (or 12V):
  Full Power: 4,200LM
  R112 (Ref. 30) Power: 1,390LM
• Color Temperature for High Beam: 5500-6500K

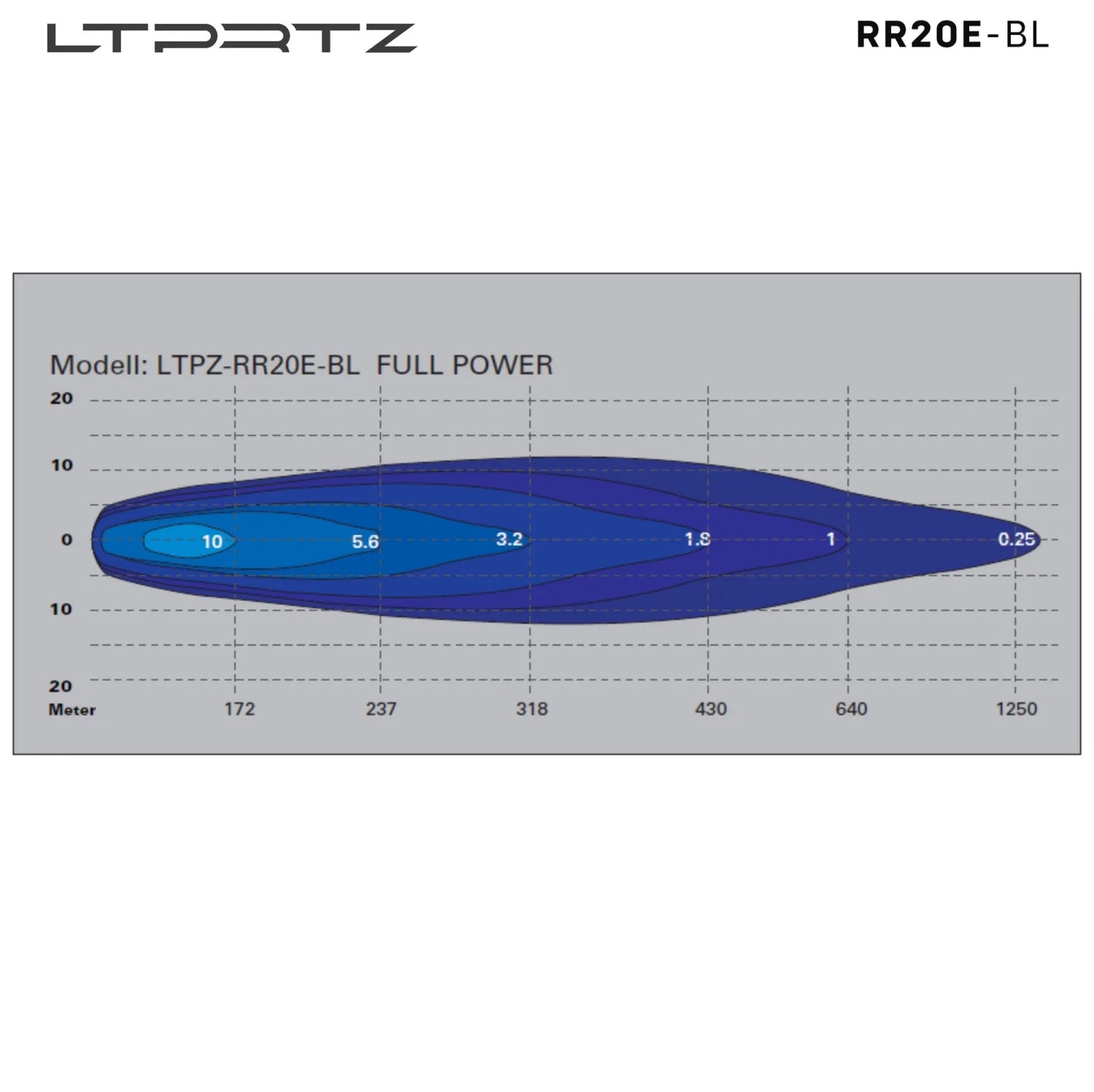

• Range (1 Lux) at 13.2V (or 12V):
  Full Power: 640m
  R112 (Ref. 30): 350m
• Candela at 13.2V (or 12V):
  Full Power: 409,600
  R112 (Ref. 30): 133,000
• Cable Length: 55cm
• Connector: DTP
• Ingress Protection: IP68
• Dimensions: 549x81x87mm
• AMBER Background Light Color: White, Orange
• Homologation: ECE R112 Ref. 30 | ECE R10

Delivery Scope:

• 1x REAPER 20 Inch High Beam Lightbar
• Mounting kit including:
  2x Rear adjustable brackets
  2x Side adjustable brackets

Wiring Diagram:

DT 4-Pin Connector. The corresponding plug is included:

• Phase 1: Ground -
• Phase 2: AMBER White +
• Phase 3: AMBER Orange +
• Phase 4: High Beam +
• Phase 5: ECE Mode (blue separate wire)
