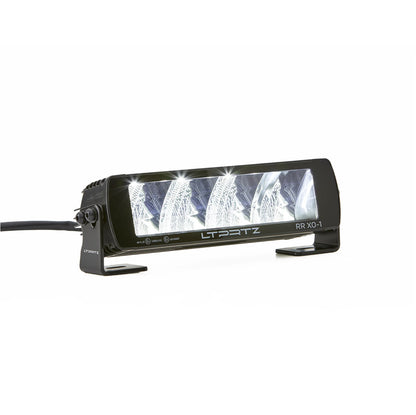

REAPER 12-Inch AMBER – High Beam Lightbar with E-Approval

REAPER 12 Inch High Beam Lightbar

With AMBER Backlight in Orange and White (Offroad Only)

This compact high beam lightbar reaches nearly 500m in Full Power mode.
Switch to the Onroad mode and use the REAPER lightbar in pairs for ECE-compliant operation, enhancing your vehicle's high beams.
ECE-approved for road use without requiring additional registration.
As a special feature for off-road enthusiasts, this lightbar offers orange and white AMBER backlighting.
And what looks good, performs even better.

Technical Specifications:

• Voltage Range: 9-36V
• Power Consumption (A) for High Beam at 13.2V (or 12V):
  Full Power: 5.45A @12V
  R112 (Ref. 25) Power: 1.92A @12V
• Power Output for High Beam at 13.2V (or 12V):
  Full Power: 67.58W @12V
  R112 (Ref. 25) Power: 21.8W @12V
• Number and Type of LEDs: Domestic: 5520
• Theoretical Lumens at 13.2V (or 12V):
  Full Power: 2800LM
  R112 (Ref. 25) Power: 1030LM
• High Beam Color Temperature: 5500-6500K
• Range (1 Lux) at 13.2V (or 12V):
  Full Power: 470m
  R112 (Ref. 25): 290m
• Candela at 13.2V (or 12V):
  Full Power: 230,000
  R112 (Ref. 25): 105,000
• Cable Length: 55cm
• Connector: DTP
• Protection Class: IP68

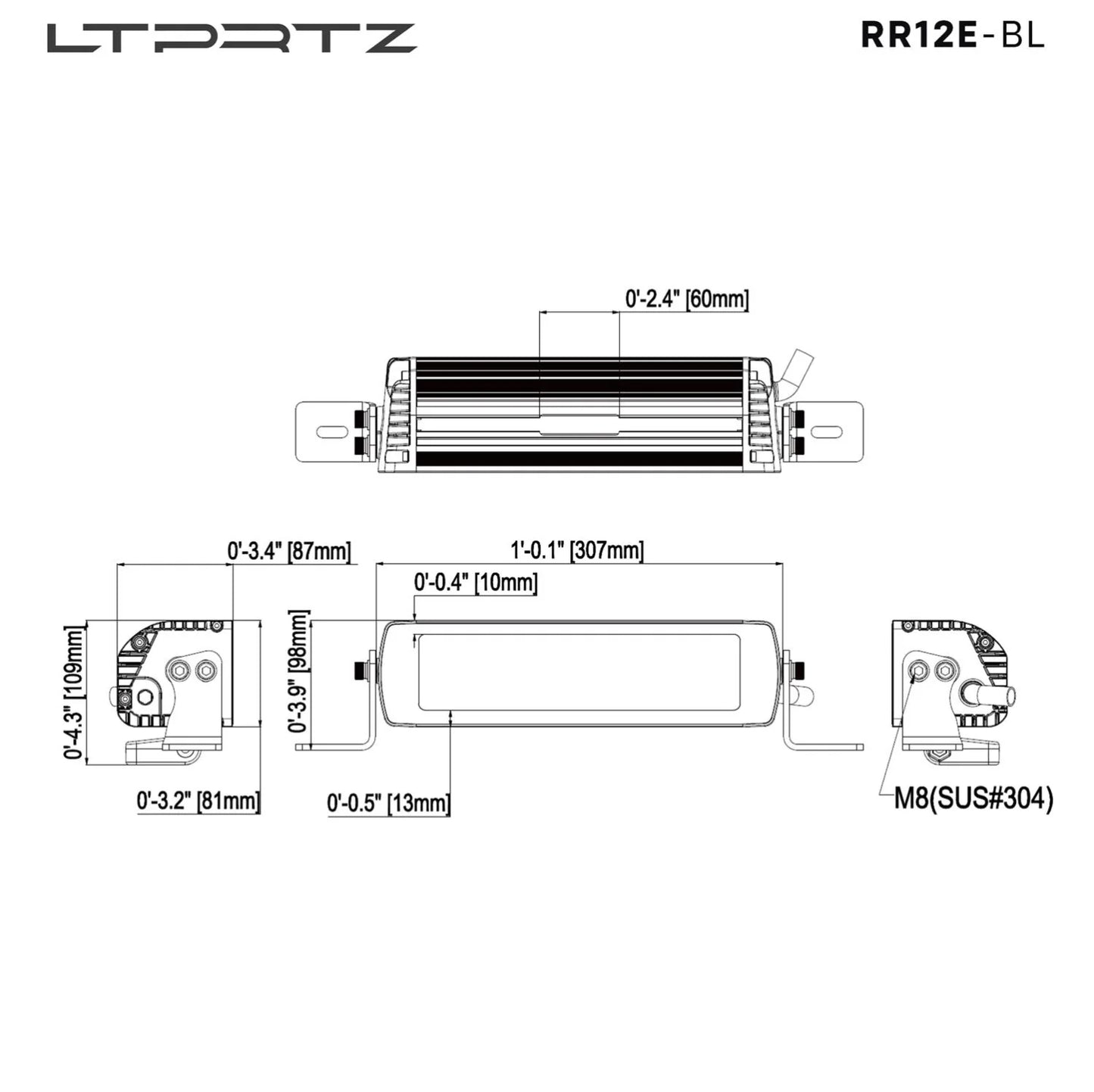

• Dimensions: 307 x 81 x 87mm
• AMBER Backlight Colors: White, Orange
• Homologation: ECE R112 Ref. 25 | ECE R10

Scope of Delivery:

• 1x REAPER 12 Inch High Beam Lightbar
• 1x Set of mounting hardware including:
  2x Rear adjustable brackets
  2x Side adjustable brackets

Connection Diagram:

4-Pin DT Connector. Matching counterpart is included:

• Phase 1: Ground (-)
• Phase 2: AMBER White (+)
• Phase 3: AMBER Orange (+)
• Phase 4: High Beam (+)
• Phase 5: ECE Mode (blue separate wire)
