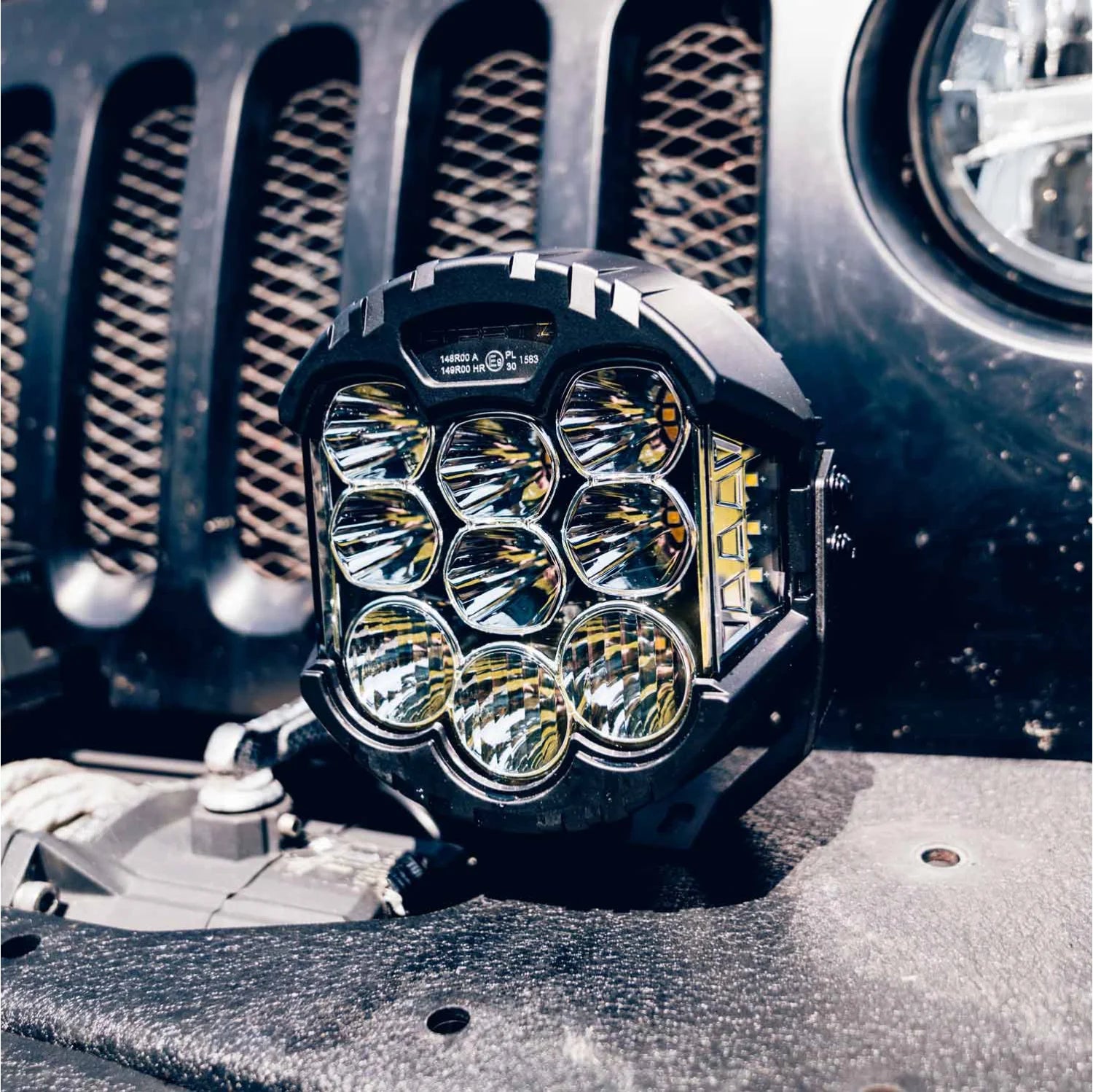

Rave-X 7 Inch White

Technical Specification

Background light approved as Position Light

Beam pattern: COMBO
Lumen (raw): 7950lm

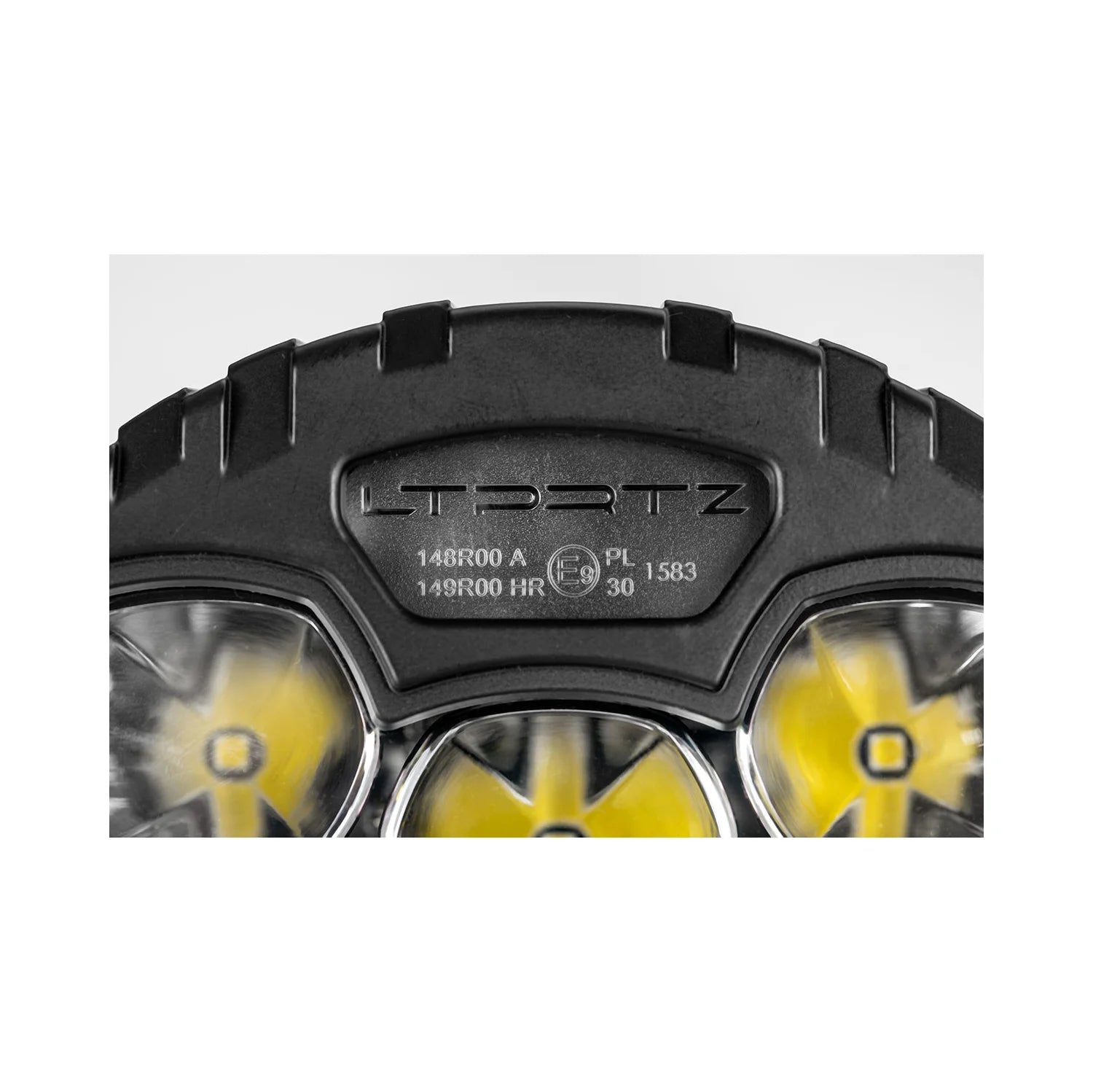

Homologation: ECE R149 HR / ECE R148 A | ECE R10 (EMC)
Protection class: IP 69K
Voltage: 9-33V
Power consumption (Driving/Position Light): 12V: 75W / 3.5W | 24V: 61W / 4.3W
Lens: Hard-coated Polycarbonate
Reflector: Polycarbonate

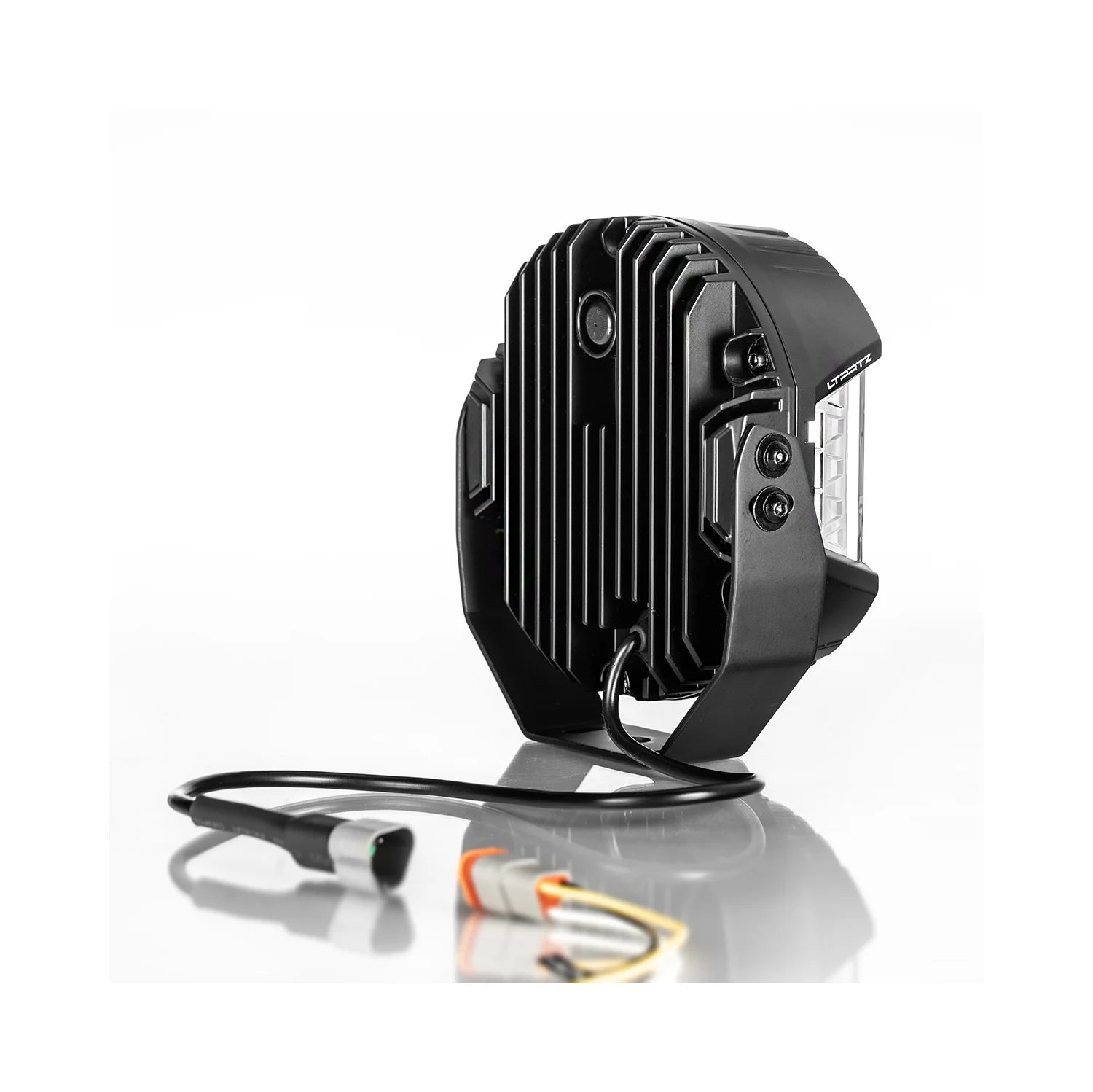

Housing: Aluminum die-cast housing
Mounting: Black coated stainless steel
LED: 15+7 High Power LEDs
Color temperature: 5000K

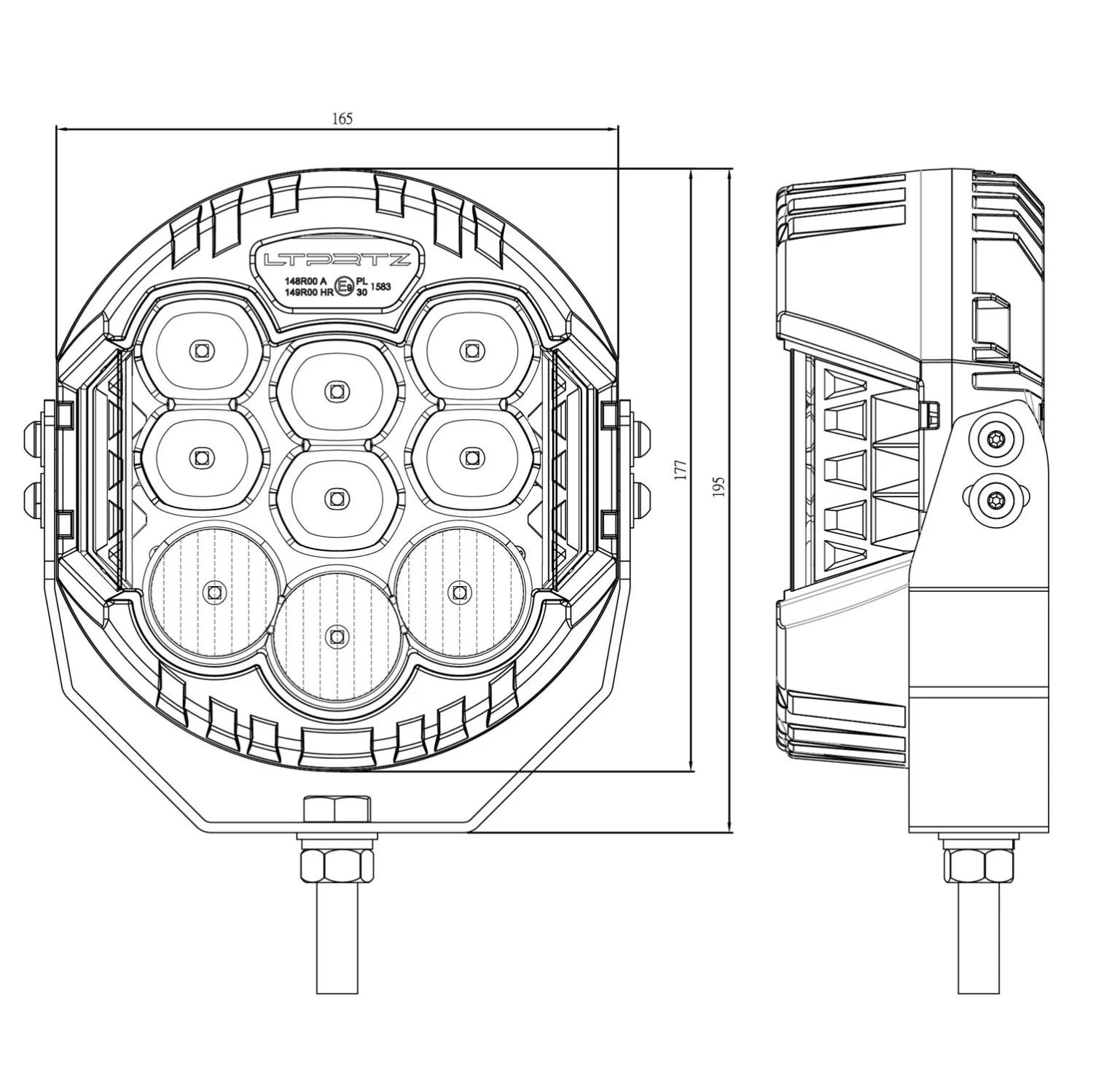

Dimensions: 165 x 78.5 x 195mm
Weight: 1.6kg
Connector: 3-Pin DT Connector
Range: 360m (1Lux)
Reference: 30 / 131,000cd
