Description

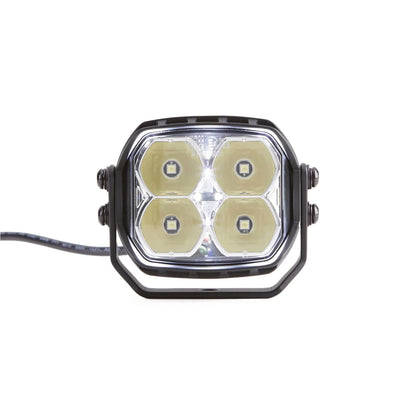

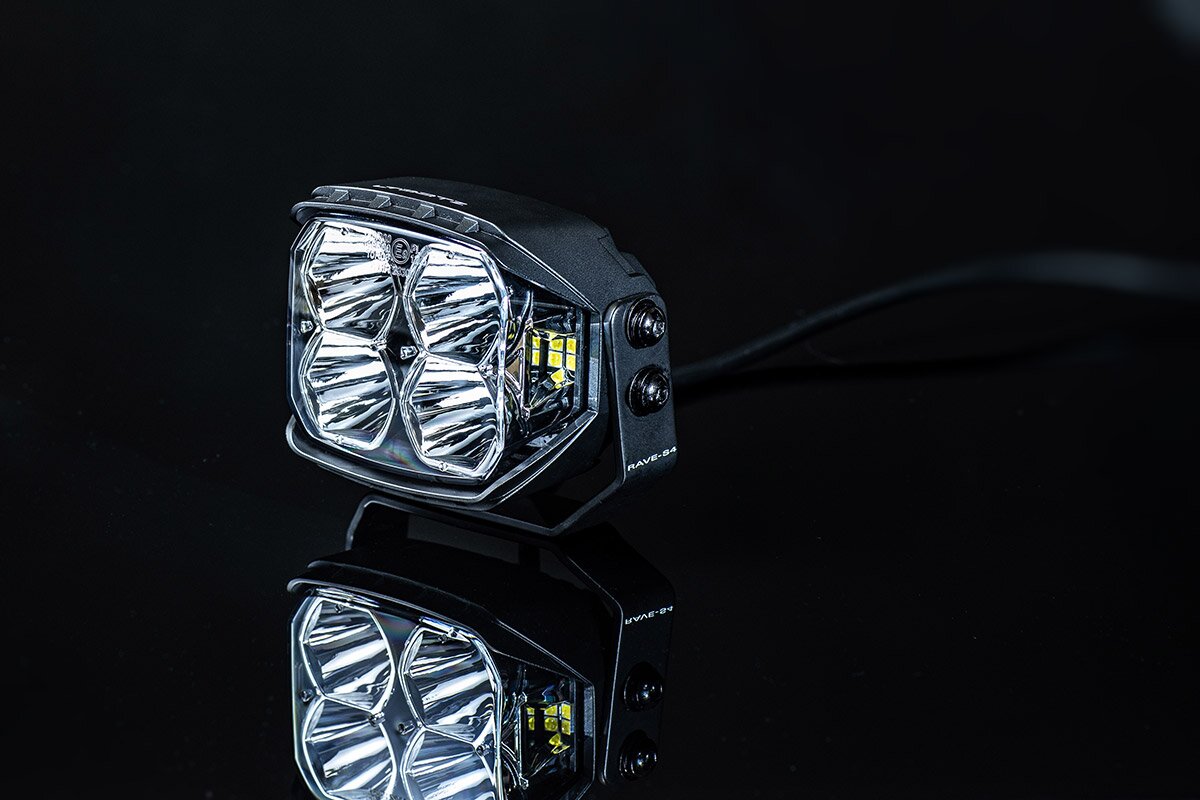

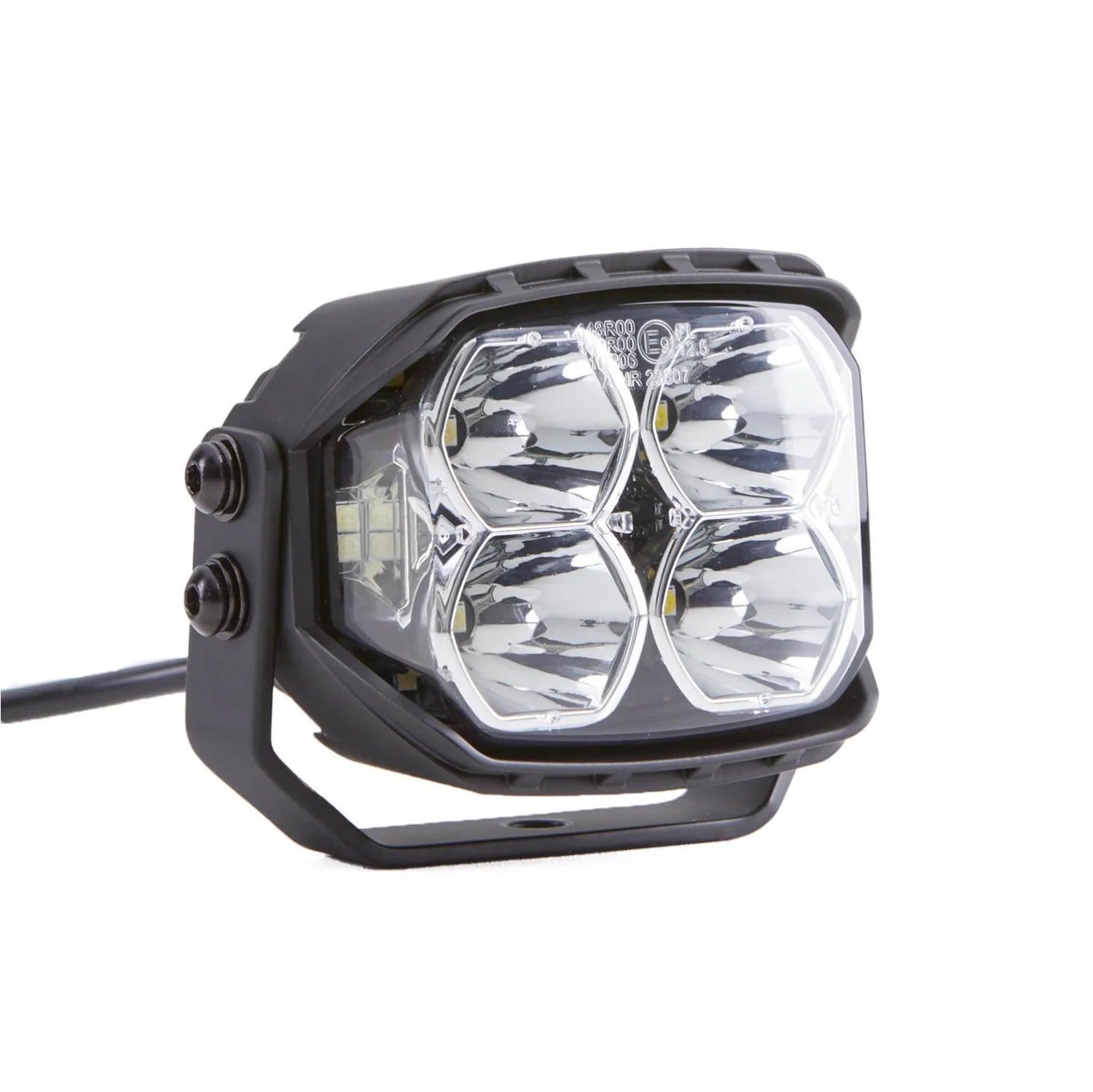

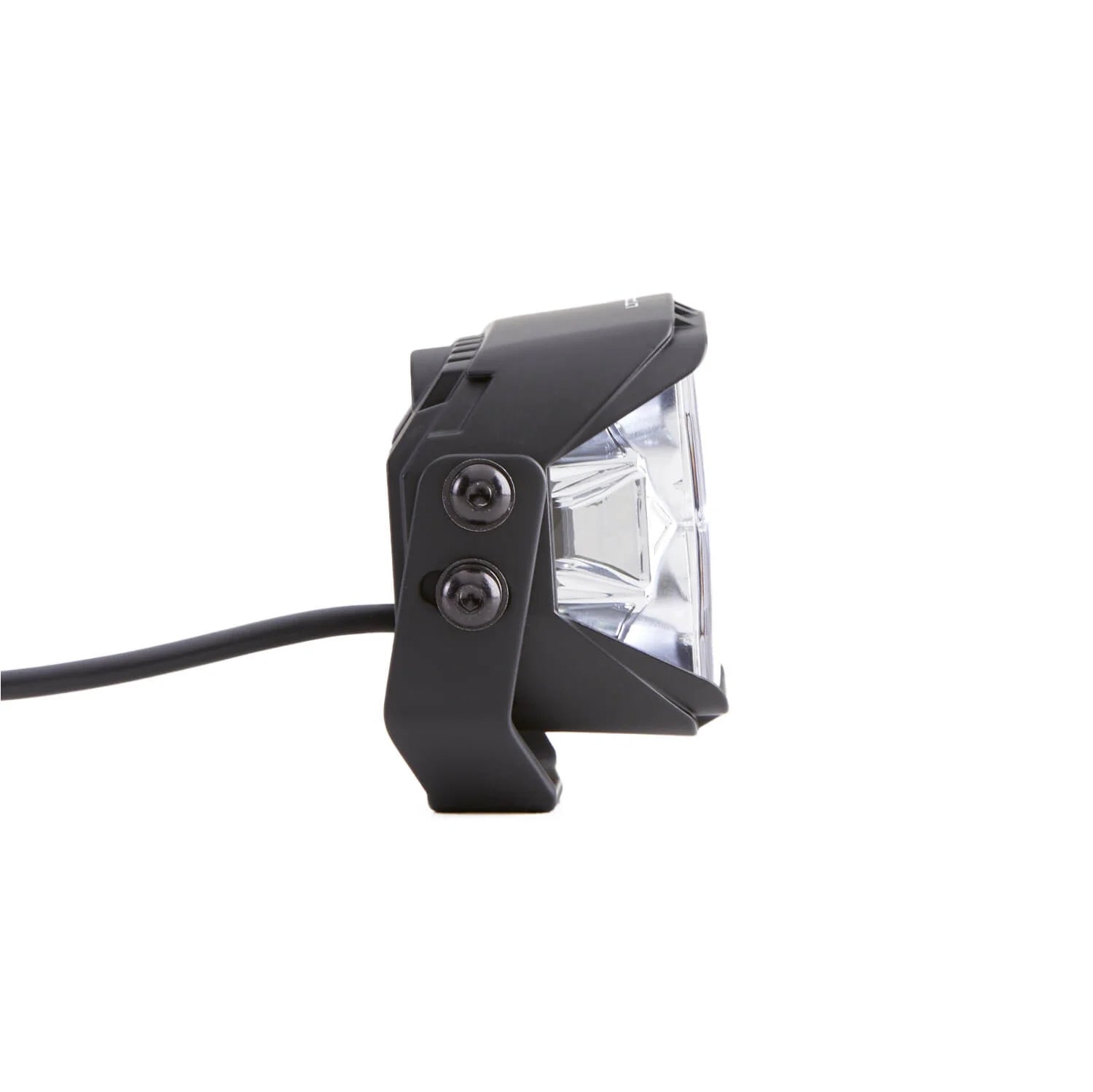

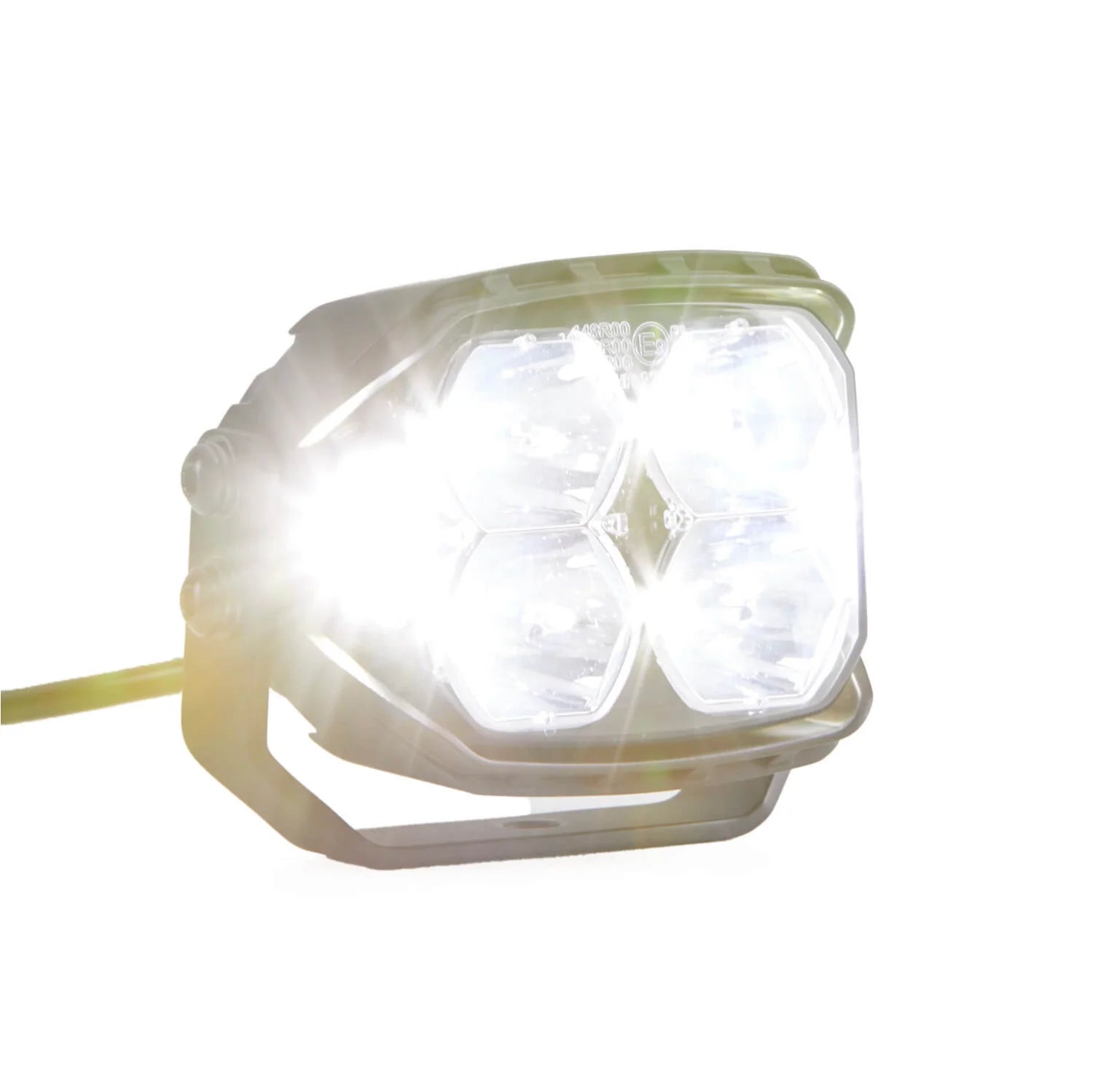

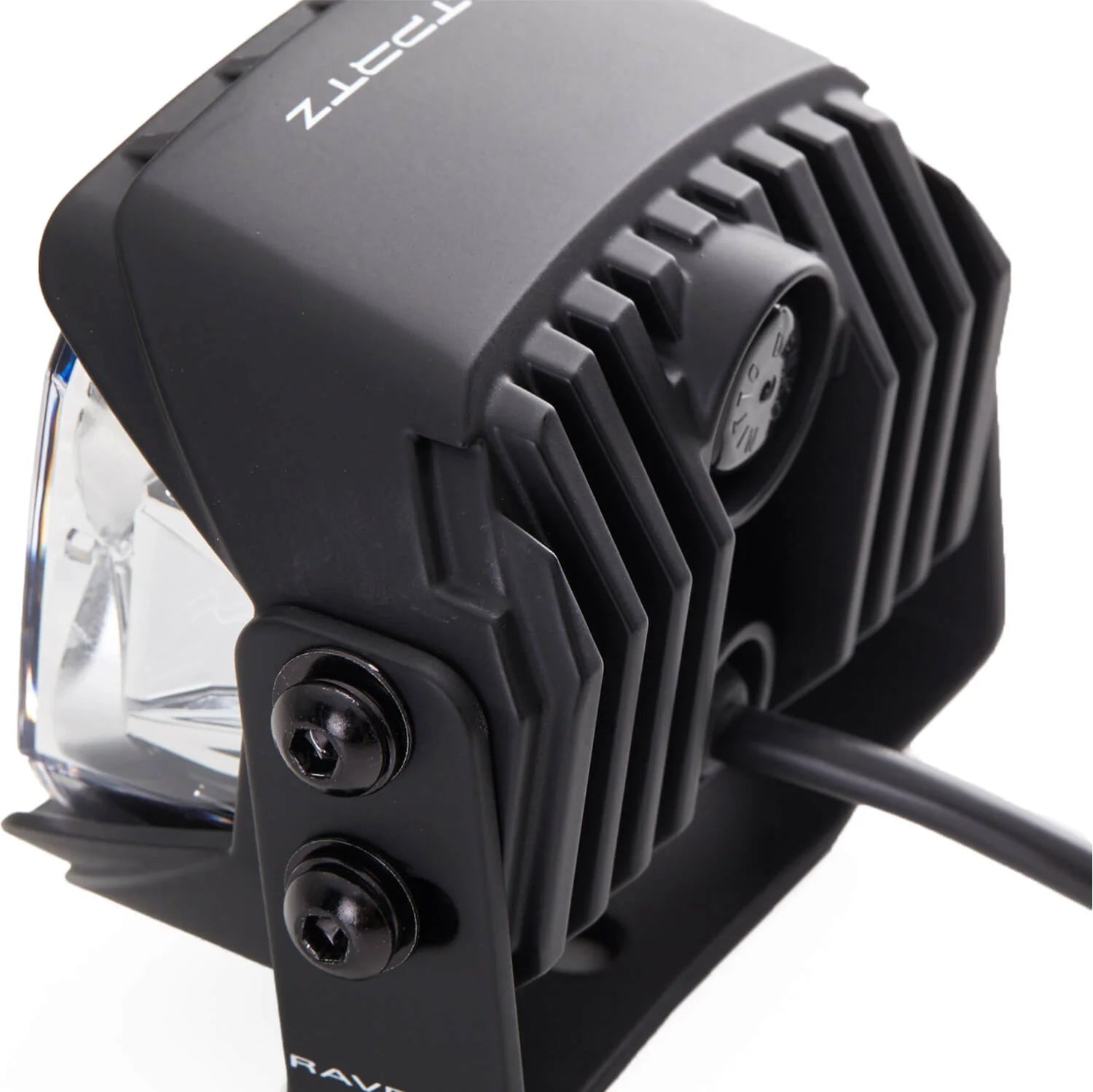

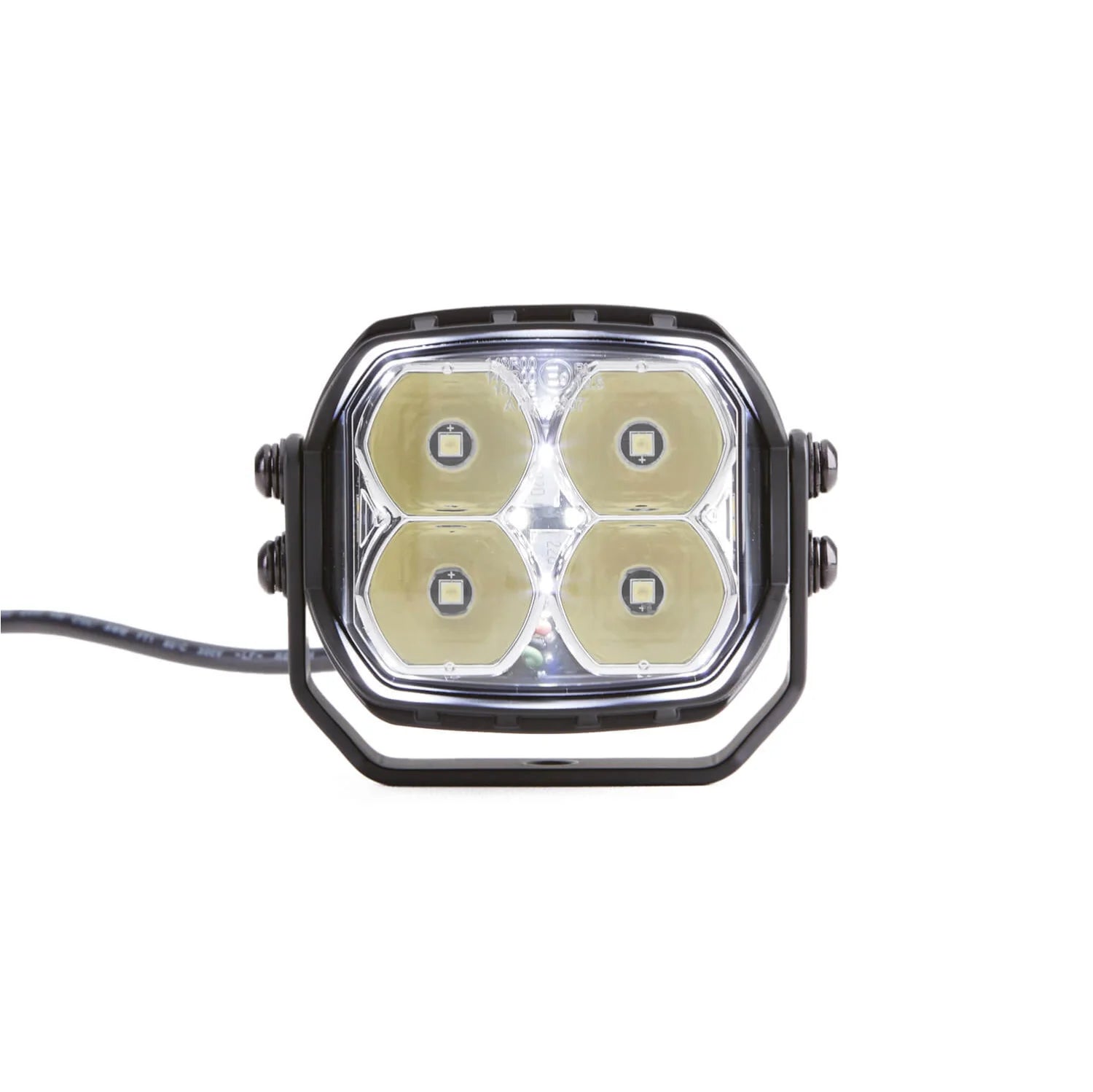

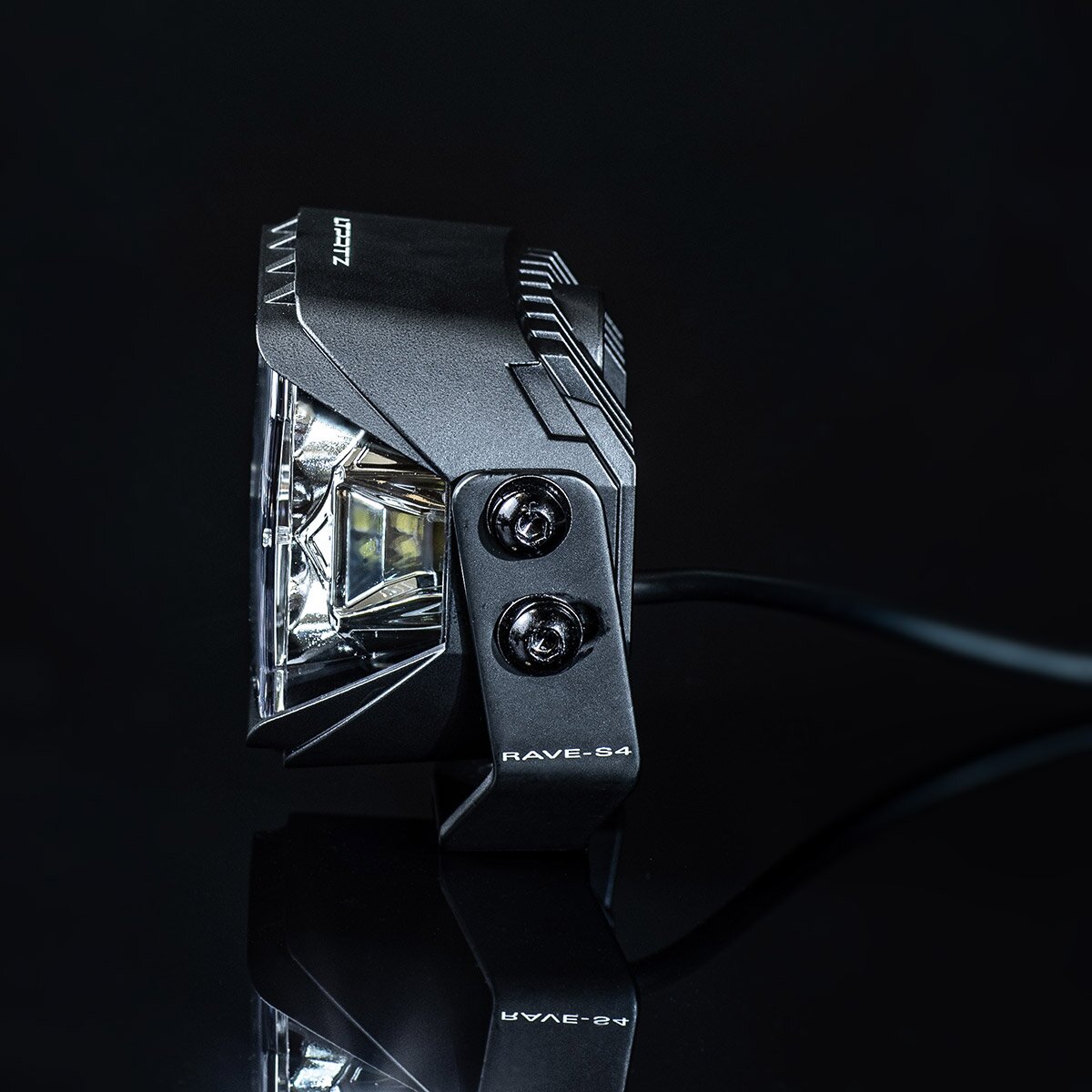

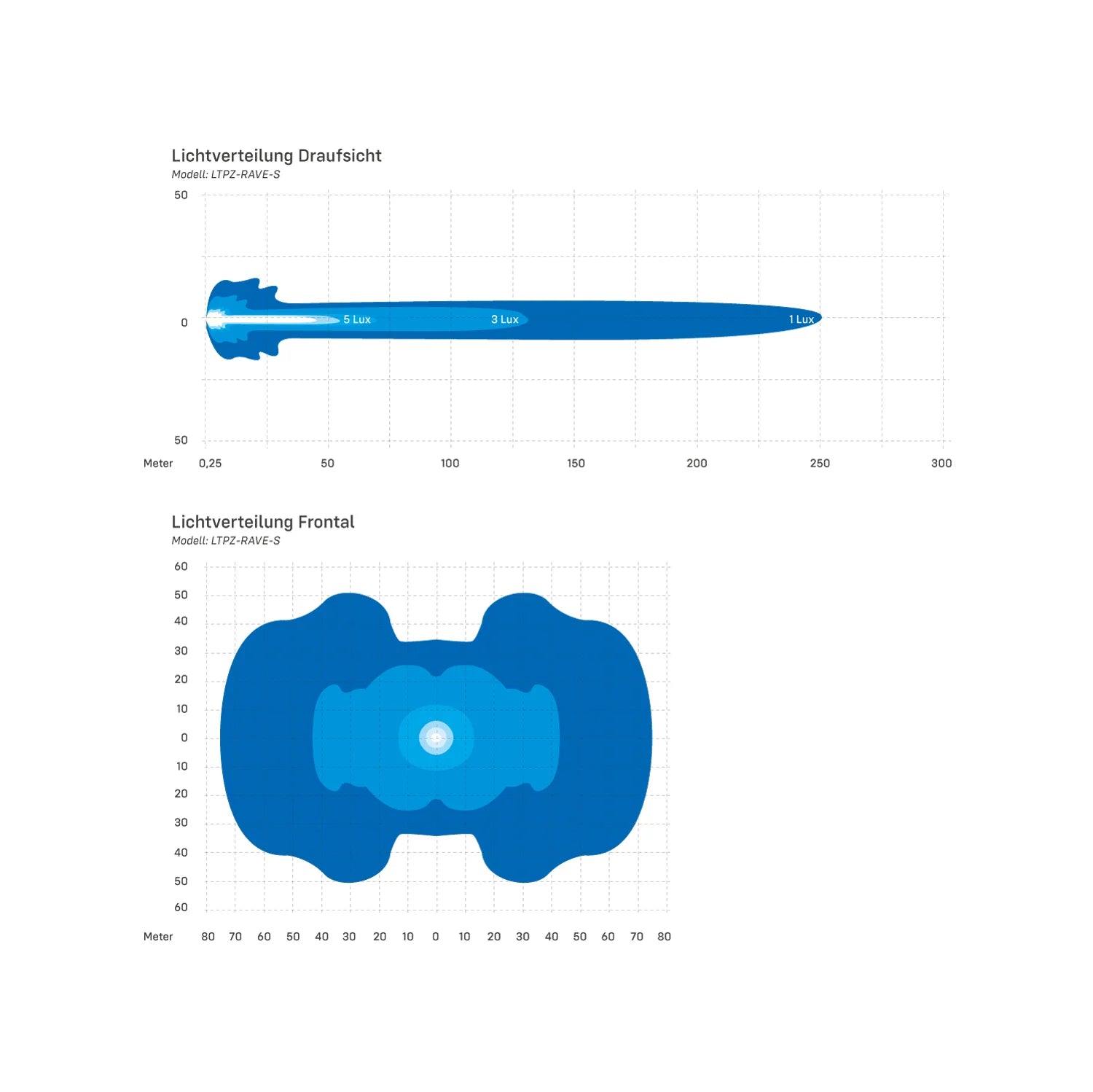

The 3.5 Inch RAVE-S from LTPRTZ not only impresses with its unique design but also with first-class performance in terms of illumination, range, and functionality. Over 250m at 1 Lux allows you to experience daylight-bright adventures even at night. In addition to
the ECE approval as a high beam, the white background light is also approved as a position light and is road-legal according to STVO.
Dimensions

Technical Specs
- Operating Voltage: 9-33V DC
- Power Consumption (12/24V) :
- Parking Light 1.9W/2.3W | High Beam 29W/28W
- Housing: Aluminum ADC12
- Lens and Reflector: Polycarbonate
- Mounting: Stainless Steel
- Connection: Deutsch 3-pin
-
ECE Homologation:
R10 | R148 | R149 - LEDs: 16x High Power
- Light Color: White
- Luminous Intensity: 62,000 cd
- Protection Class: IP69K
-

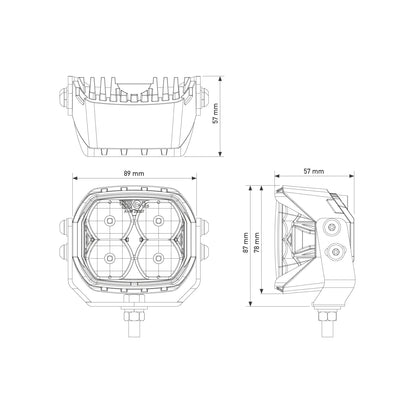

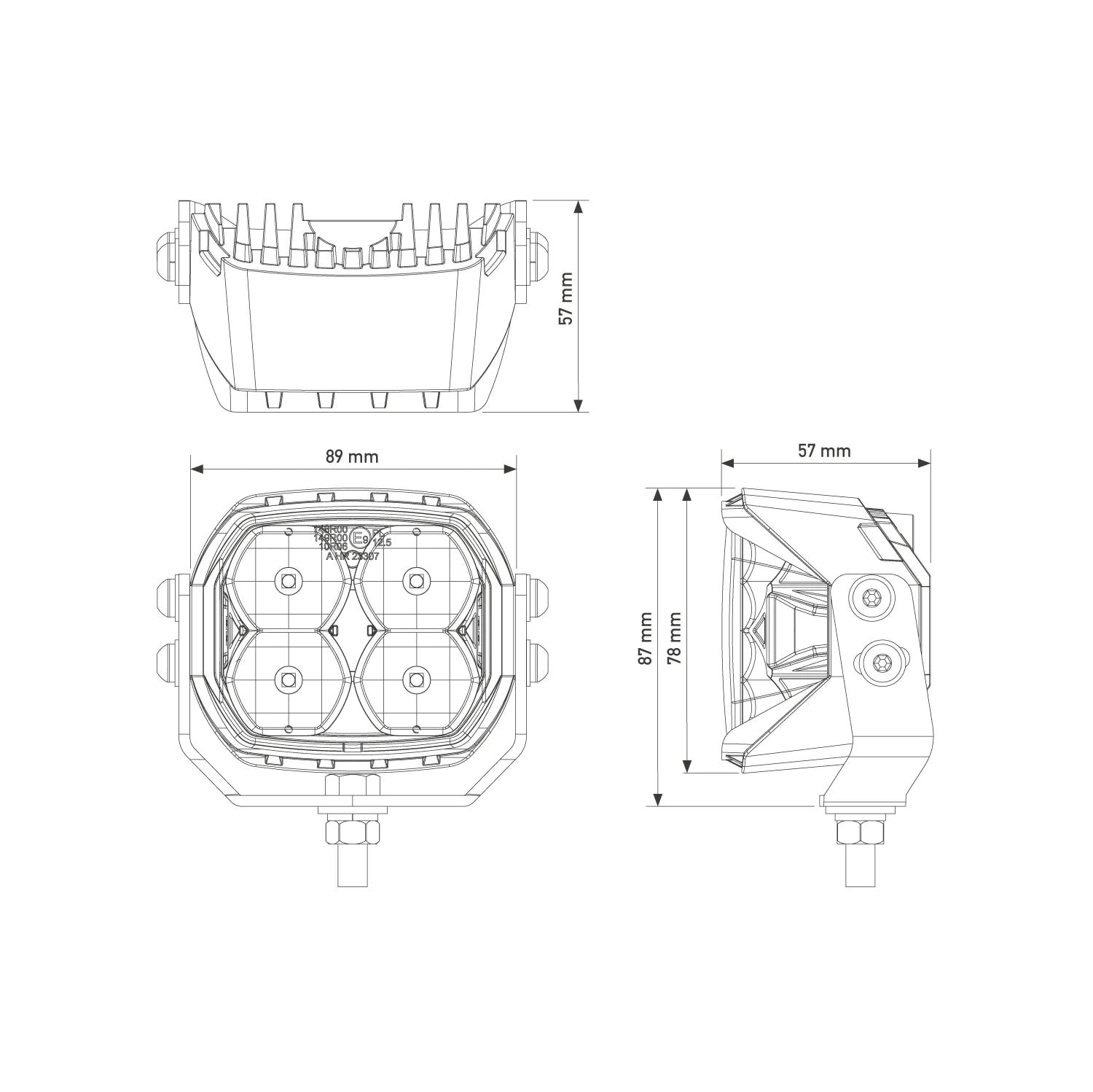

Dimensions:
89 x 78 x 57 mm
