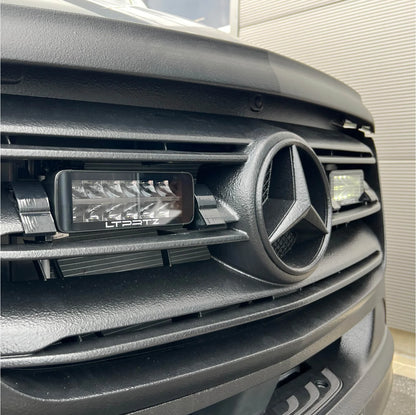

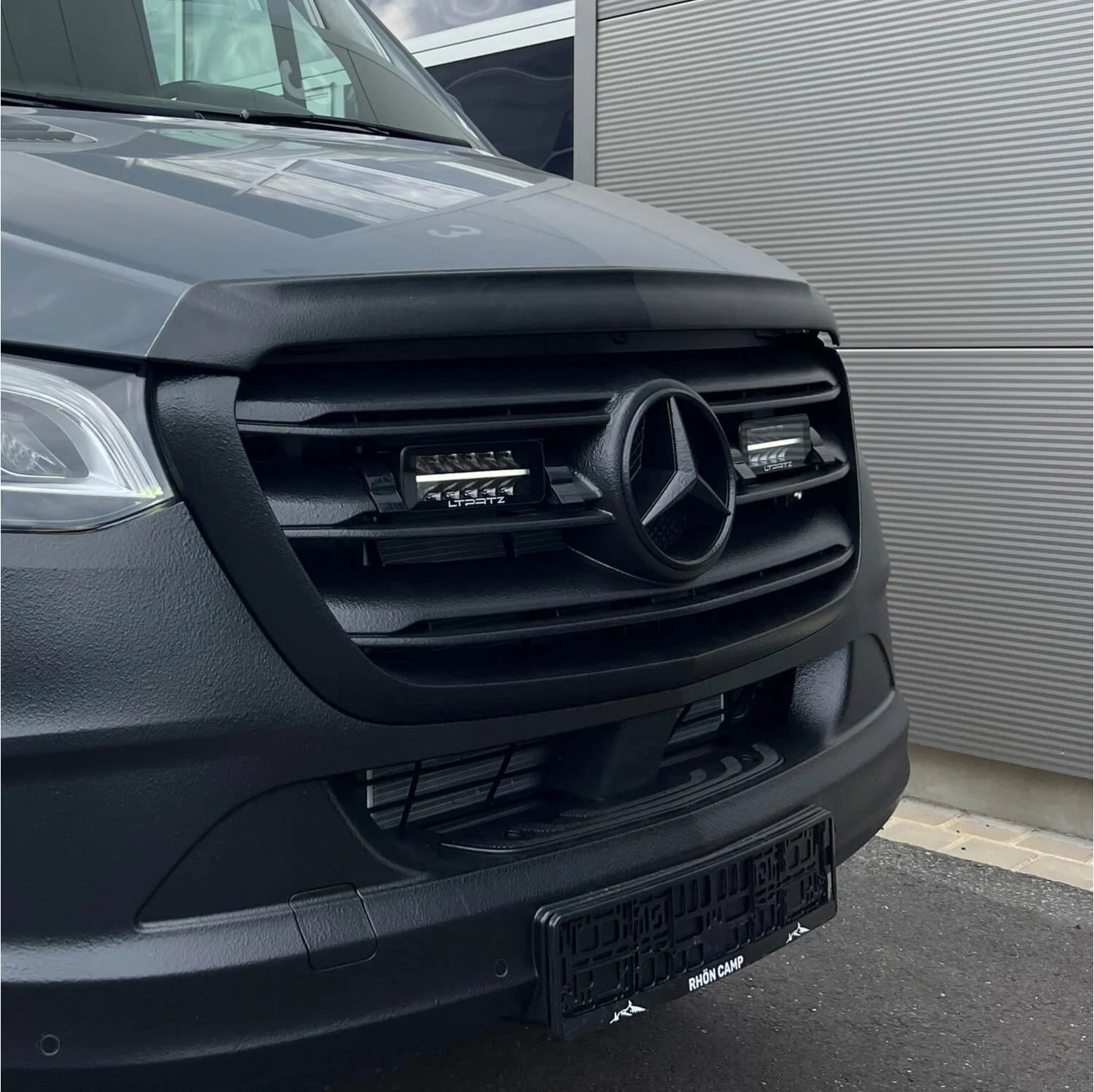

MB Sprinter W907 Grill Integration Kit Plug & Play

DESCRIPTION

Mounts:

• Four high-quality mounts for the installation of two headlights
• Sturdy mounts made from 3D printing
• Paintable
• UV- and weather-resistant ABS material
• Fits MB Sprinter W907
• Headlight alignment on the mount via long hole drilling

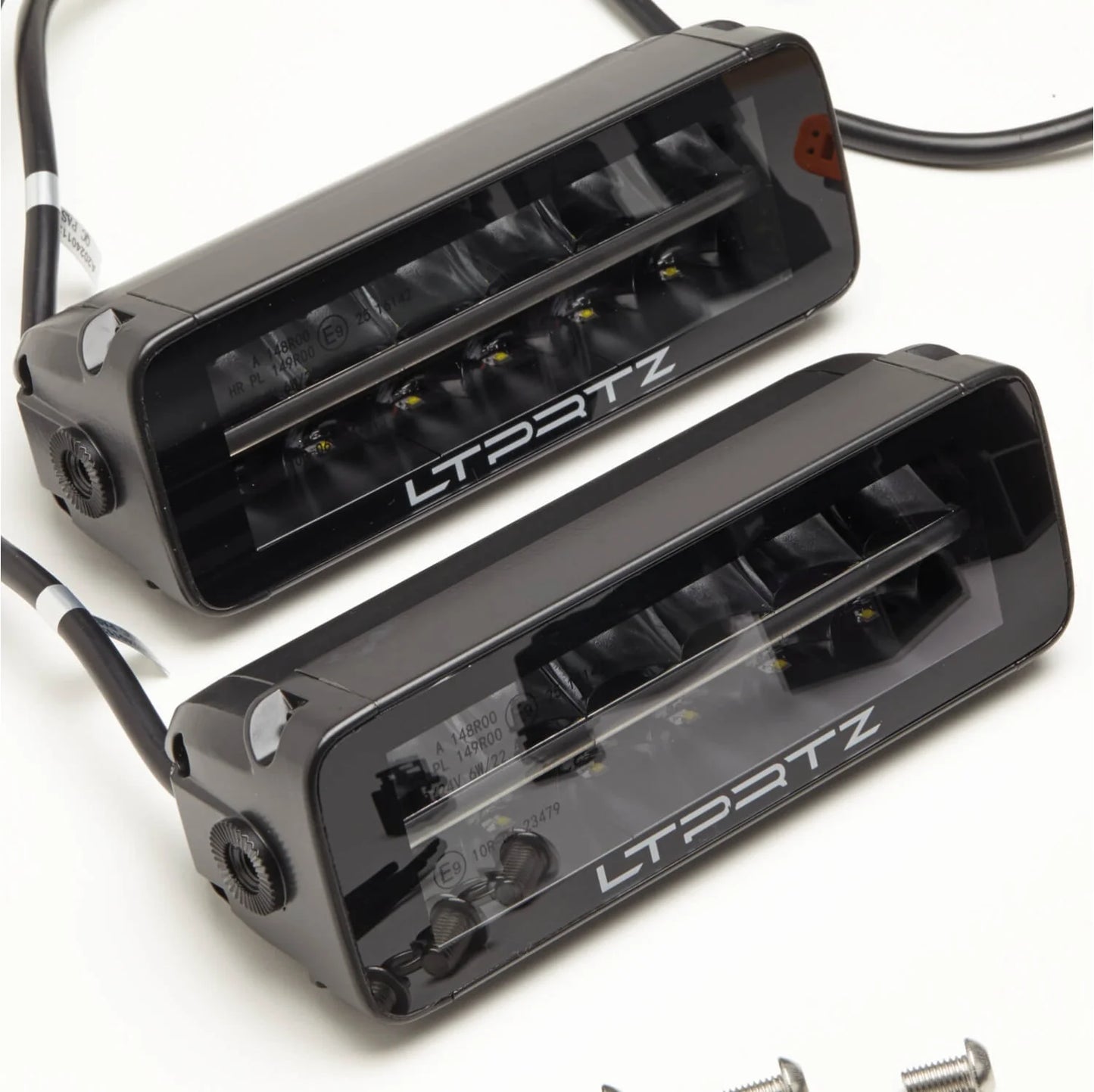

Headlights:

• 3rd generation of our popular TRX series
• With position light strips in white (with E-approval)

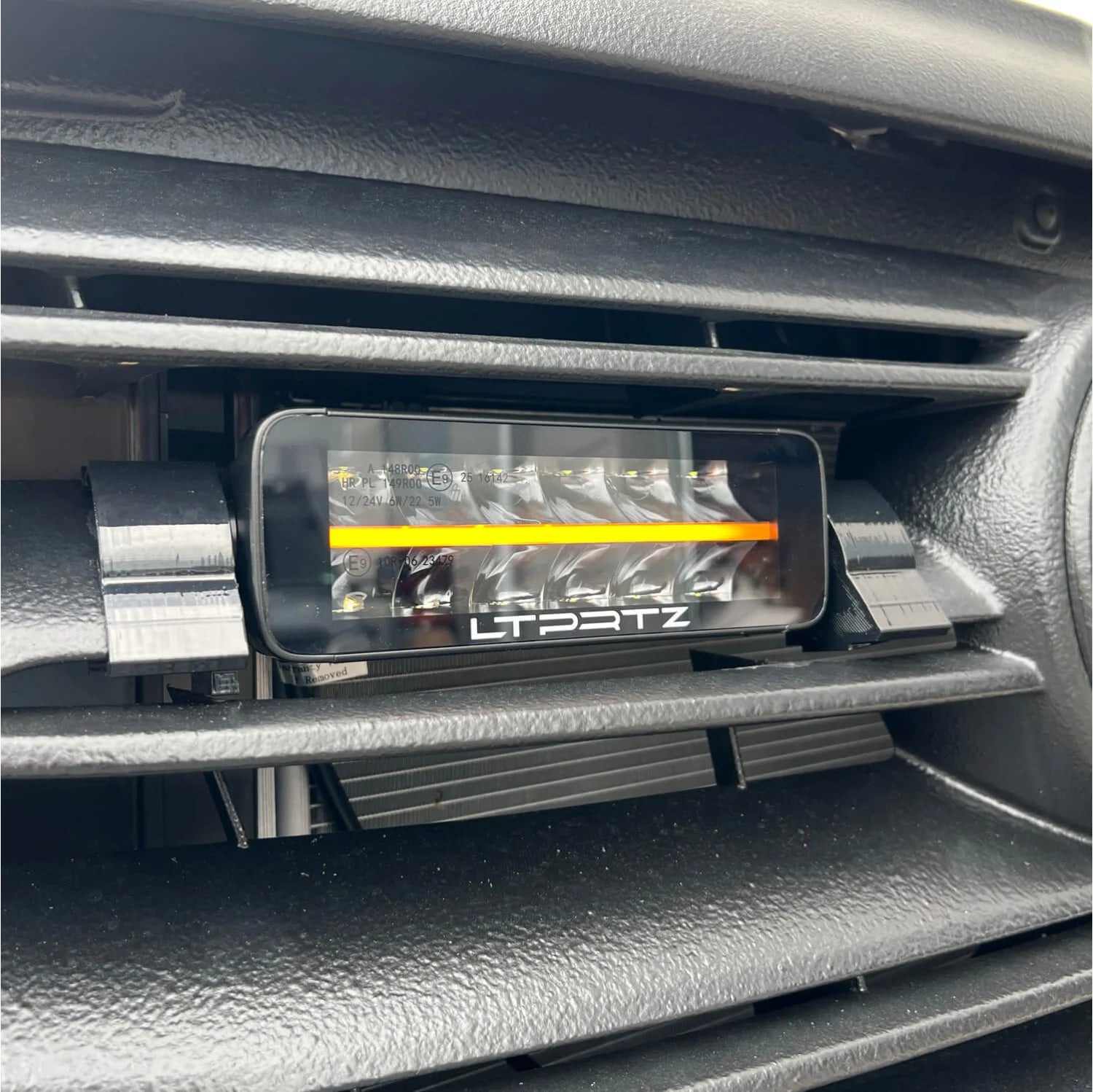

• AMBER light strips in orange (off-road only)
• With off-road boost mode function. The boost mode can be activated off public roads.
• The new anti-glare reflectors combine bundled spot and wide-spreading flood elements for a homogeneous illumination of the entire field of view
• Complete with mounting material
• Unique stealth design without screws on the front
• Use case: Public roads with ECE-approved high beams

Technical Specifications:

• High beam power: R149: 22.8W | Boost-Mode: 47.6W
• Position light power: R148: 6W
• Operating voltage: 10-30 V
• Protection class: IP 67
• LED chips: 12 pieces x 5W
• Effective light output: 1,540 lm | Boost mode: 3,238 lm
• Housing color: Black
• Color temperature: 5800K
• Material: Extruded aluminum housing
• Lens material: Polycarbonate
• Mounting: Robust aluminum mount
• Light dispersion: Spot 10°
• Range: 658 m (0.25 Lx), 329 m (1 Lx)
• Homologation: ECE R149 | R10
• Reference number: 25
• Dimensions L x W x H (housing): 20.36 x 6.71 x 7.0 cm

Relay Wiring Kit with Dongle

Wiring kit for easy connection of auxiliary headlights. All connections and cable lengths are pre-configured for quick, easy, and safe installation.

The wiring kit is simply connected to the battery in the engine compartment, the ground point behind it, and the headlights.

A Bluetooth relay integrated into the wiring kit communicates with the vehicle via an OBD dongle. This synchronizes the operation of the headlights with the vehicle's standard high beams.
The tedious search for the high beam signal is eliminated, and a destruction-free installation is ensured.

The switch between white and orange position lights is possible via a connector in the engine compartment.
Before first use, the dongle must be configured via the app: The appropriate protocol for the vehicle must be selected in the app, and signals must be assigned. Estimated time: approx. 5 minutes.

Notes:
The use of the orange position light is only permitted off public roads!
The reference number of the main headlights must be verified by the customer to prevent exceeding the maximum total reference number of 100. This primarily applies to vehicles with factory-installed LED headlights.
For some vehicles, it may be necessary to test several protocols in the XBB app to select the correct one for your vehicle.

CAR-ELECTRIC Wiring Kit:

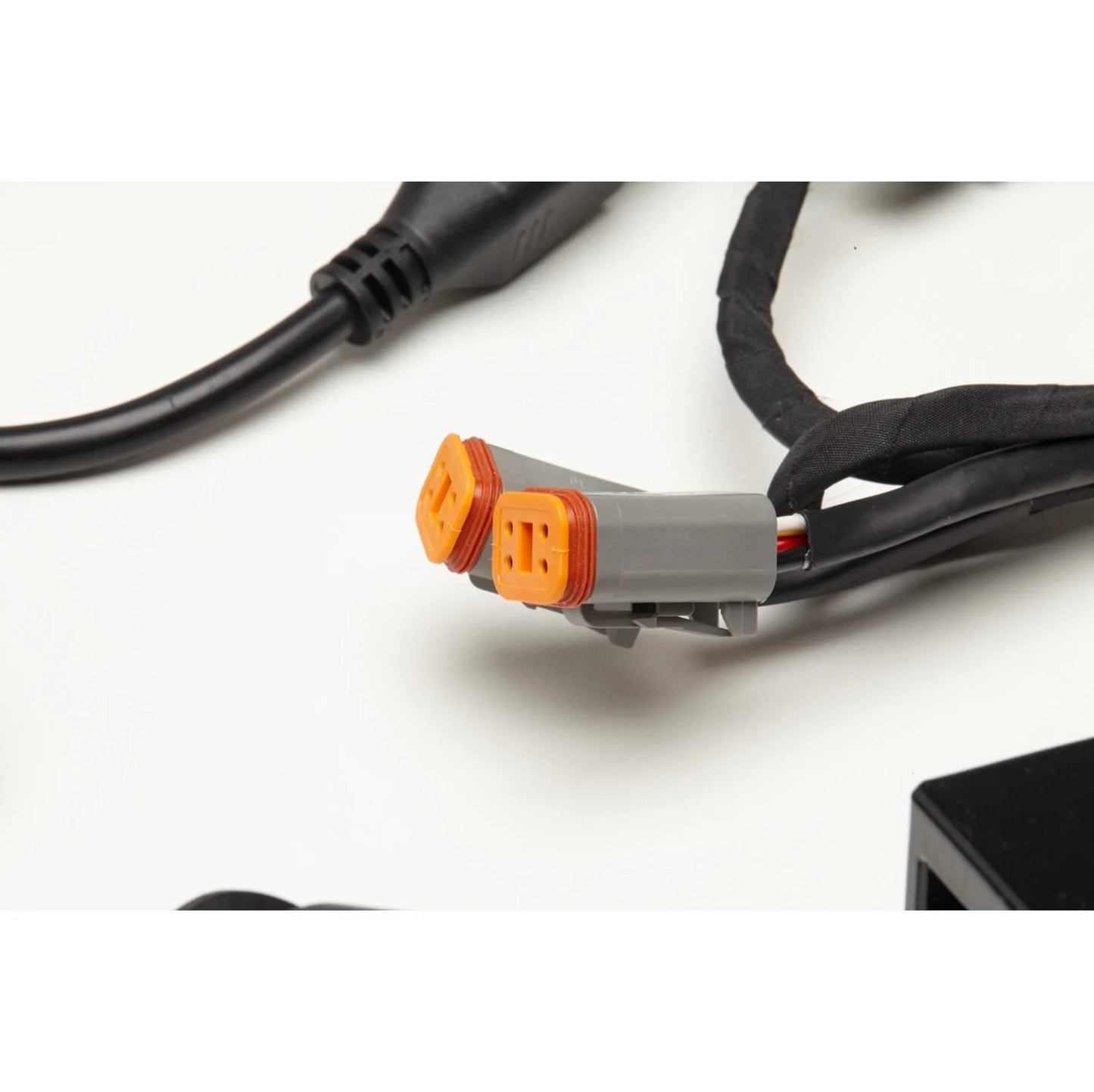

Relay wiring kit for two high-performance LED lights with 4-pin DT connectors

• Only fits headlights LP-TRX3-7E
• 2x Deutsch 4-pin connectors
• Custom-fit wiring kit for connecting two headlights
• With relay carrier for XBB PowerUnit relay in the engine compartment
• High-quality cables and connectors, M6 ring terminals
• Made in Reinbek, near Hamburg, Germany

XBB Bluetooth Dongle:

• XBB Bluetooth Dongle for connection to the OBD interface
• Configuration via app (App name: XBB)
• In-app configuration of the headlight control
• Selection of various functions: e.g., linking high beam to the high beam signal, linking position light to engine running signal

Package Includes:

• 2x TRX 3.0 7 Inch
• 4x ABS Mounts
• 1x CAR-ELECTRIC Wiring Kit
• 1x XBB Dongle & XBB PowerUnit
