MB Sprinter W906 Facelift (2013 -2018) Grill Integrationkit Plug & Play

DESCRIPTION

Mounting Brackets:

• Four high-quality brackets for mounting two headlights
• Sturdy 3D-printed mounting brackets
• Paintable
• UV- and weather-resistant ABS material
• Fits only for Mercedes Sprinter W906 Facelift (2013-2019)
• Aligning headlights on the bracket using elongated holes

Headlights:

• 3rd generation of our popular TRX series
• With position light strips in white (ECE-approved)
• AMBER light strips in orange (Off-road only)
• With off-road boost mode function. The boost mode can be activated off public roads.
• New anti-glare reflectors combine bundled spot and wide-diffusing flood elements for a homogeneous illumination of the entire field of view
• Completely with mounting hardware
• Unique stealth design with no screws on the front
• Application: Public roads with ECE high beam approval

Technical Data:

• High beam power: R149: 22.8W | Boost mode: 47.6W
• Position light power: R148: 6W
• Operating voltage: 10-30 V
• Protection class: IP 67
• LED chips: 12 pieces x 5W
• Light output (effective): 1,540 lm | Boost mode: 3,238 lm
• Housing color: black
• Color temperature: 5800K
• Material: extruded aluminum housing
• Lens material: polycarbonate
• Mounting: Robust aluminum bracket
• Light scattering: Spot 10°
• Range: 658 m (0.25 lx), 329 m (1 lx)

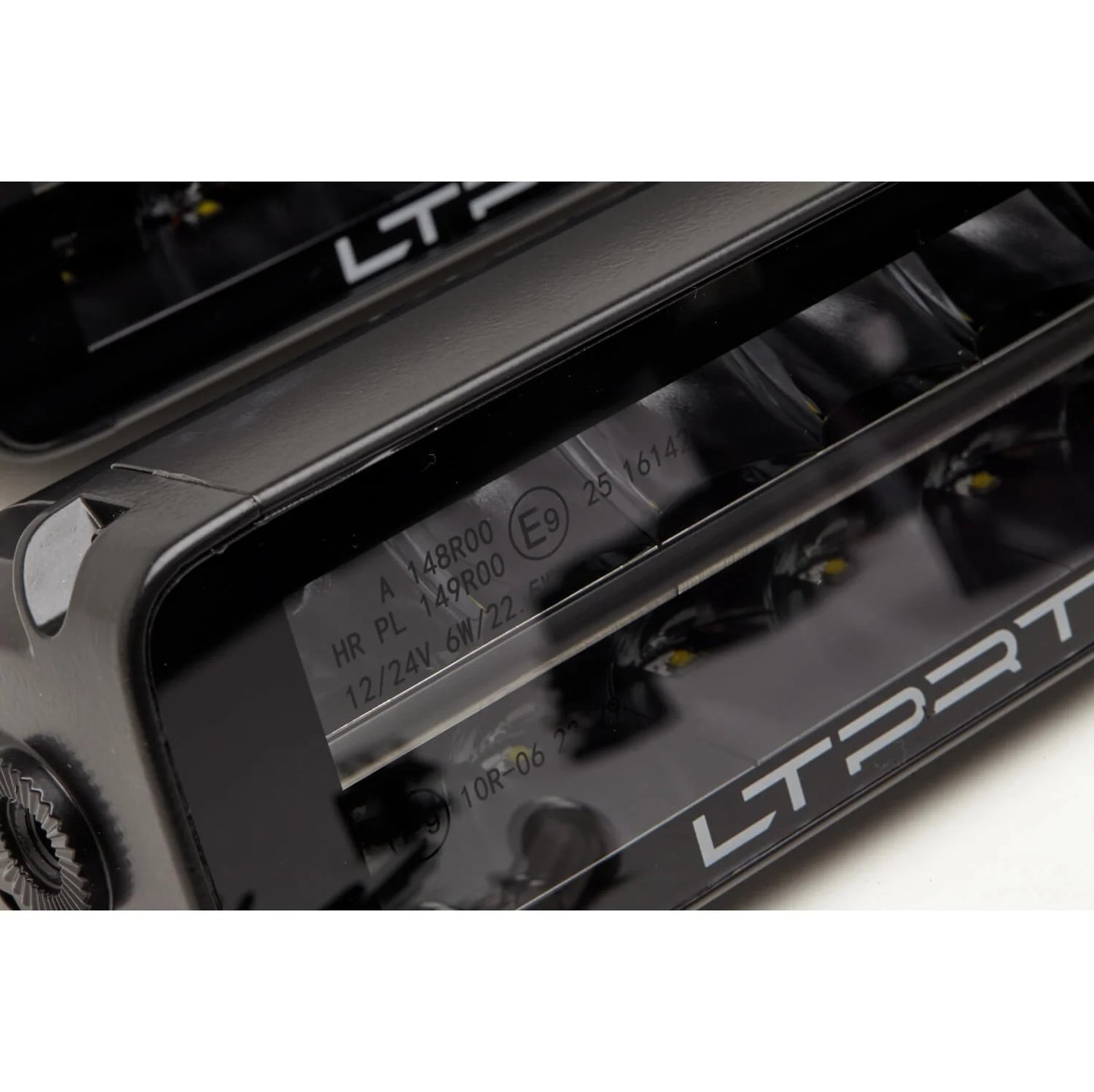

• Homologation: ECE R149 | R10
• Reference number: 25
• Dimensions L x W x H (housing): 20.36 x 6.71 x 7.0 cm

Relay Wiring Kit with Dongle

The wiring kit allows for easy connection of the auxiliary headlights. All connectors and cable lengths are pre-configured, making the installation quick, simple, and secure.

The wiring kit is simply connected to the battery in the engine bay, the ground point behind it, and the headlights.
No cables need to be routed into the passenger compartment!

An integrated Bluetooth relay in the wiring kit communicates with the vehicle via an OBD dongle. This synchronizes the control of the headlights with the vehicle's standard high beam.
This eliminates the need to search for the high beam signal, ensuring a non-destructive installation.

The switch between white and orange position light can be done via a plug connection in the engine bay.
Before the first use, the dongle must be set up via the app: The correct vehicle protocol must be selected and the signals assigned. Time required: approx. 5 minutes.

Notes:
The use of the orange position light is only permitted off public roads!
The reference number of the main headlights must be checked by the customer to prevent exceeding the allowed total reference number of 100. This mainly applies to vehicles with factory-installed LED headlights.
For some vehicles, it is necessary to test multiple protocols in the XBB app to select the correct protocol for your vehicle.

CAR-ELECTRIC Wiring Kit:
Relay wiring kit for two LED high-performance lights with 4-pin DT connectors

• Fits only for headlights LP-TRX3-7E
• 2x Deutsch 4-pin connectors
• Custom-fit wiring kit for connecting two headlights
• With relay carrier for XBB PowerUnit relay in the engine bay
• High-quality cables and contacts, ring cable shoes: M6
• Made in Reinbek near Hamburg, Germany

XBB Bluetooth Dongle:

• XBB Bluetooth dongle for connection to the OBD interface
• Setup via app (App name: XBB)
• In-app configuration of the headlight control
• Selection of various functions: e.g. coupling high beam to high beam signal, coupling position light to engine run signal

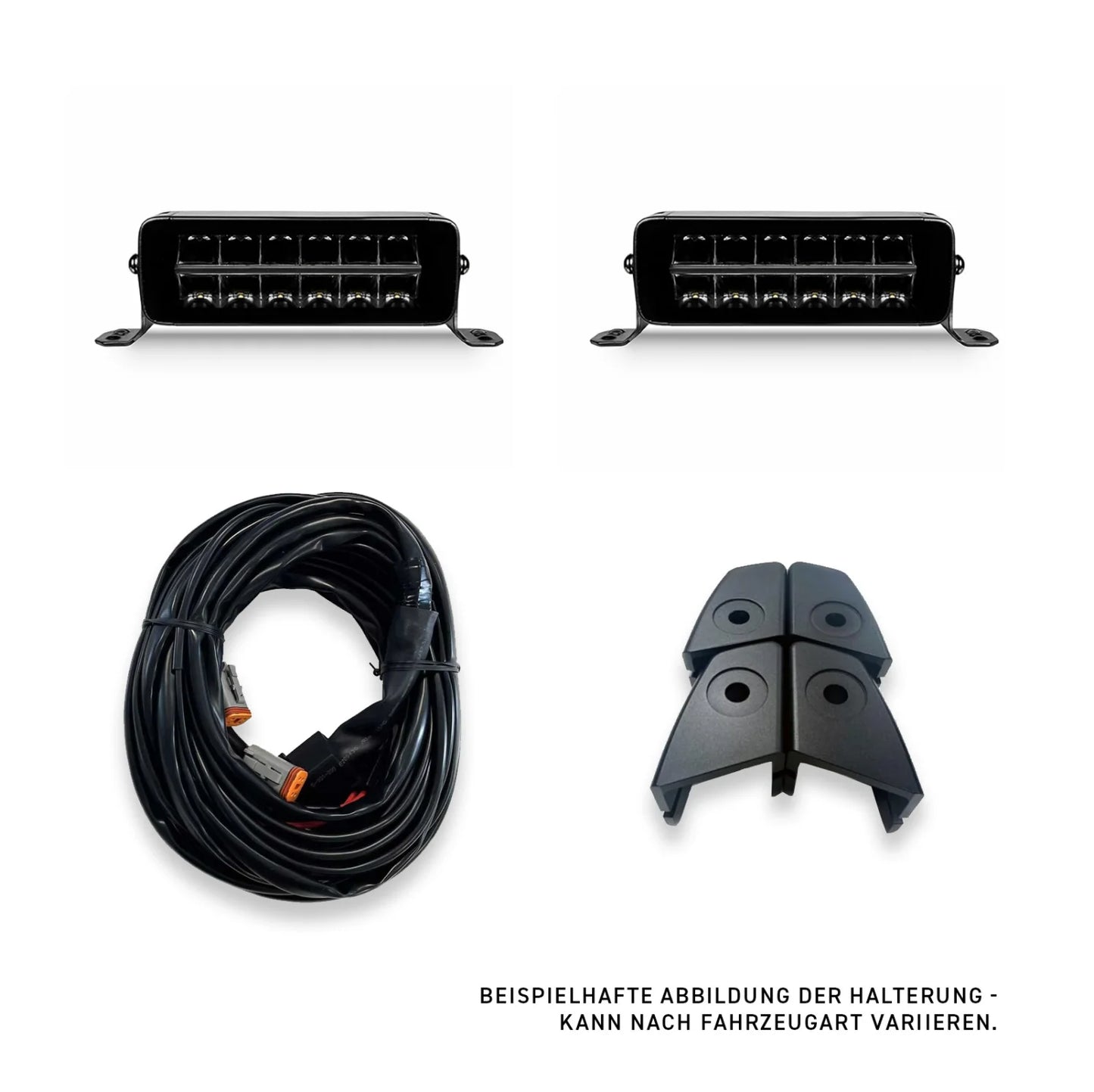

Scope of Delivery:

• 2x TRX 3.0 7 Inches
• 4x ABS Mounting Brackets
• 1x CAR-ELECTRIC Wiring Kit
• 1x XBB Dongle & XBB PowerUnit
