ATTA 5S Synthetic Rope 5000LB 2.3t 12V

DESCRIPTION

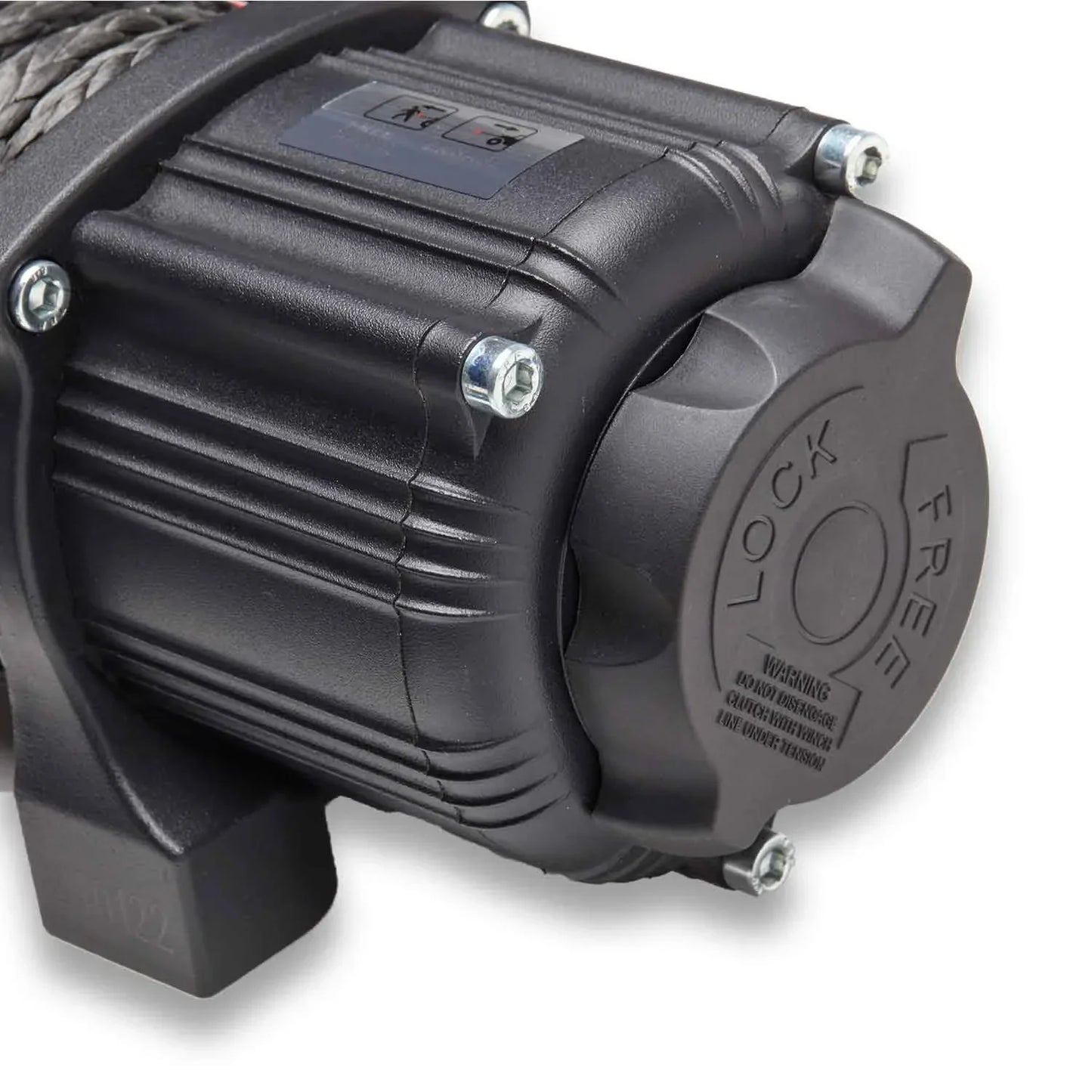

ATV Winch ANTWINCH ATTA 5S

Electric ATV Winch with Long Drum Technology 12V 2.3t

• Powerful 12V motor
• Pulling capacity of 2.3 tons in the 1st layer
• Equipped with Long Drum Technology
• Extra rope length of 15.2 m
• Available with steel or synthetic rope
• Efficient planetary gearbox
• Rolling speed of over 7 m/min
• Includes 1x wired & 2x wireless remote controls
• Control box with heavy-duty contactor & battery cable
• Includes mounting plate
• Weatherproof
• Versatile applications

Electric ATV Winch with Long Drum Technology 12V 2.3 t

The newly developed ATV Winch ATTA 5S, from the German company Winch Industry GmbH, is the result of years of customer feedback and expertise as operators of a winch trading platform. We know how to push uncompromising quality to the limit, which is why we have launched the agile ATV winch ATTA 5S with Long Drum Technology for extra rope lengths.

We draw inspiration from nature's forms. An ant, despite its small size, can carry many times its own body weight. This makes it the undisputed champion in the animal kingdom in terms of performance weight. Following this animal model, our ANTWINCH ATTA 5S is designed with its small size and compact design for use on agile ATVs! Despite its compact size, the ATTA 5S is extremely powerful. Its small size also makes the winch attractive for other applications, such as boat launching.

A True Workhorse!

The electric ATV winch ANTWINCH ATTA 5S is versatile. Thanks to its compact size and low weight, the ATV remains light and agile, but gets a powerful boost. With the included mounting accessories and mounting plate, the winch is easy to install. The ATTA 5S becomes a reliable helper in any terrain. With the greater pulling power of 2.3 tons in 1st layer, moving large loads becomes effortless! To fully utilize the high output of the high-performance motor, we rely on an efficient planetary gear system. The improved gearing ensures optimal power transmission. The ATTA 5S is designed for heavy loads, so we guarantee maximum operating safety. The integrated braking system automatically secures large loads reliably. The control box features a high-quality high-performance protection. The control box can be mounted above the motor using the included mounting bracket and battery cable.

In addition to the increased pulling power, the ATTA 5S is equipped with Long Drum Technology. With the larger drum, a rope length of 15.2 meters and a larger rope diameter of 5,4 mm are possible. This powerful winch with extra rope length makes recovery and pulling tasks easy. With the high rolling speed of over 7 m/min, rolling up after work is also particularly fast.

Our compact winch for quads is a real all-rounder. The delivery includes 1x cable remote control and 2x radio remote controls. This allows for operation from a safe distance. Depending on the application, the winch can be configured and is available with either a steel rope or a synthetic rope. Both ropes guarantee uncompromising quality and performance. To ensure optimal functionality and durability, our ATTA 5S with steel rope is additionally equipped with a roller rope window.

For our ATV winch, we have the highest standards for quality and durability! Even at an affordable price, our customers receive a product with high-quality matte black powder coating and a waterproof cover that reliably keeps water and other extreme weather conditions at bay. This ensures unrestricted quality over many years of intensive use.

Technical Specifications of the ANTWINCH ATTA 5S:

• Motor: 12V high-performance motor
• Pulling Power: 5,000 LBS / 2.3 t in 1st layer
• Speed: over 7 m/min
• Long Drum Technology
• Rope: 15.2 meters long steel or synthetic rope (Dia: 5,4 mm)
• Efficient planetary gear system
• 1x cable & 2x radio remote controls
• Control box with heavy-duty relay & battery cable
• High-quality matte black powder coating
• Includes mounting plate
• Wind & weather resistant

Applications:

• Any ATVs
• Boats
• Hunting
• Trailers
• Vehicle construction
• Industry

Features & Benefits of the ANTWINCH ATTA 5S at a glance:

• Uncompromising premium quality
• Compact size and low weight
• Long Drum Technology
• Over 7 m/min
• Powerful 12-volt high-performance motor
• Efficient planetary gear system
• 2.3 t pulling power in 1st layer
• Includes 1x cable & 2x radio remote controls
• Control box with heavy-duty relay & battery cable
• High-quality matte black powder coating
• Weather resistant
• Includes mounting plate
• Versatile applications
• Easy installation
