Antwinch

ATTA 3 steel cable 3500LB 1.6t 12V

ATTA 3 steel cable 3500LB 1.6t 12V

SKU:AW-EW-SG3-W

The electric ATV winch ANTWINCH ATTA 3 is versatile. Its compact size and low weight keep the ATV light and agile while providing a powerful addition.

Regular price 2 695 SEK
Regular price Sale price 2 695 SEK
Bundle Deal Out of Stock
Taxes included. Shipping calculated at checkout.

Stock at supplier - longer delivery times than normal

In stock items usually ships within 3-5 days

View full details

DESCRIPTION

ATV Winch ANTWINCH ATTA 3

Electric ATV Winch with 1 Wired & 2 Wireless Remotes 12V 1.6t

  • Powerful 12V motor
  • Pulling capacity of 1.6 tons in first layer
  • Rope length of over 15 meters
  • Available with steel or synthetic rope
  • Rewind speed of over 7 m/min

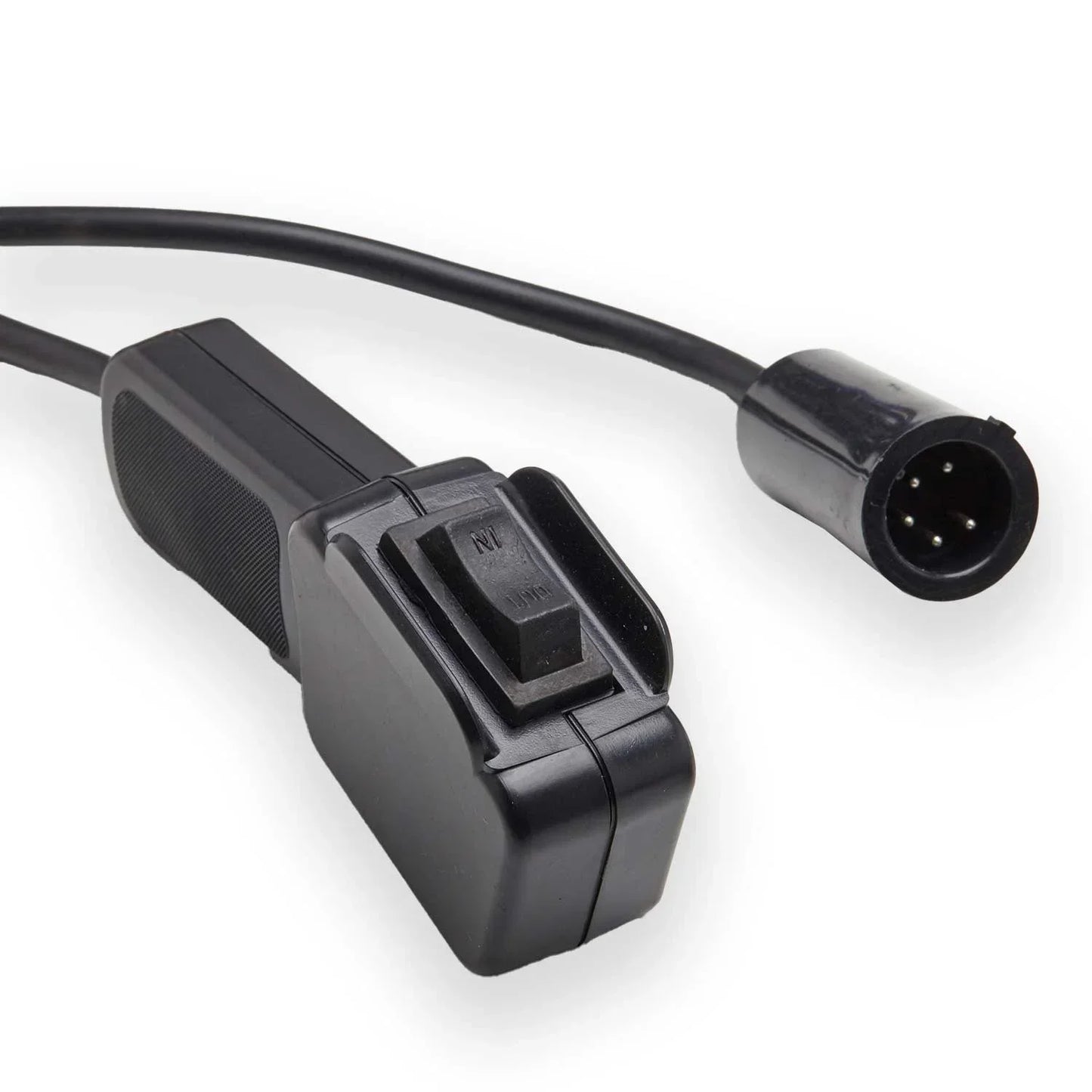

  • Includes 1 wired and 2 wireless remotes
  • Control box with heavy-duty relay and battery cables
  • Includes mounting plate
  • Weather-resistant
  • Versatile applications

Electric ATV Winch 12V 1.6 t

We draw inspiration from the forms of nature. Despite its small size, an ant can carry multiple times its own body weight. Its power-to-weight ratio is unrivaled in the animal kingdom. Following this animal model, our ANTWINCH ATTA 3, with its low weight and compact design, is designed for use on agile ATVs! Despite its small size, the ATTA 3 is extremely powerful. Its compact size also makes the winch attractive for other applications, such as boat launching.

With the included mounting accessories, including a mounting plate, the winch is easy to install. The ATTA 3 becomes a reliable helper in any terrain. Thanks to its enormous pulling power of 1.6 tons in the first layer, moving large loads is a breeze! To optimally utilize the high output of the high-performance motor, we rely on an efficient planetary gear system. With the improved gear ratio, we guarantee optimal power transfer. The ATTA 3 is designed for heavy loads, so we guarantee maximum operational safety. The integrated braking system automatically secures large loads reliably. The control box features a high-quality high-performance relay. The control box can be mounted above the motor with the included mounting bracket and battery cable.

With a rope length of 15.2 meters, recovery and pulling tasks are easy. Thanks to the high roll speed of over 7 m/min, winding up after work is also particularly fast.

Our compact winch for quads is a real all-rounder. The delivery includes 1x cable and 2x remote controls. This allows operation from a safe distance. Depending on the application, the winch can be configured and is available with either a steel rope or a synthetic rope. Both ropes guarantee uncompromising quality and performance. To ensure optimal functionality and durability, our ATTA 3 with steel rope is additionally equipped with a roller rope window.

With our ATV winch, we have the highest demands on quality and durability! Even at a reasonable price, our customers get a product with a high-quality matte black powder coating and a waterproof cover that reliably keeps water and other extreme weather conditions at bay. This guarantees unrestricted quality over many years of intensive use.

Technical Specifications of the ANTWINCH ATTA 3:

  • Motor: 12V High-performance motor
  • Pulling power: 3,500 LBS/ 1.6 t in the first layer
  • Efficient planetary gear system
  • Speed: over 7 m/min
  • Rope: 15.2 meters long steel or synthetic rope (DM: 4.8mm)
  • 1x Cable & 2x Remote controls
  • Control box with heavy-duty relay & battery cable
  • High-quality matte black powder coating
  • Including mounting plate
  • Wind & weather resistant



Layer Rated line pull (lbs / kg) Wire rope capacity (ft / m)
1 3500 / 1588 7.77 / 2.36
2 2991 / 1357 17.64 / 5.38
3 2610 / 1184 27.95 / 8.52
4 2330 / 1057 40.5 / 12.5









Line Pull  (lbs/kg) Line speed (fmp / mpm) Motor Amps
0 24.1 / 7.35 25
875 / 397 13.2 / 4.03 96
1750 / 794 11.5 / 3.5 138
2625 / 1190 8 / 2.43 176
3500 / 1588 6.2 / 1.9 215














Applications:

  • Any ATVs
  • Boats
  • Hunting
  • Trailers
  • Vehicle construction
  • Industry

Features & Advantages of the ANTWINCH ATTA 3 at a Glance:

  • Uncompromising premium quality
  • Compact size and low weight
  • Over 7 m/min
  • Powerful 12-volt high-performance motor
  • Efficient planetary gear system
  • 1.6 t pulling power in the first layer
  • Includes 1x cable & 2x remote controls
  • Control box with heavy-duty relay & battery cable
  • High-quality matte black powder coating
  • Weatherproof
  • Includes mounting plate
  • Versatile applications
  • Easy installation
